Type | Off Gird |
Max.Power | 8000W |
Output Voltage | EU And US Standard |
Certificate | TUV, ISO, CE |
Lead Time | 10 Days |
Payment | T/T, L/C,Western Union |
Warranty | 25 Years |

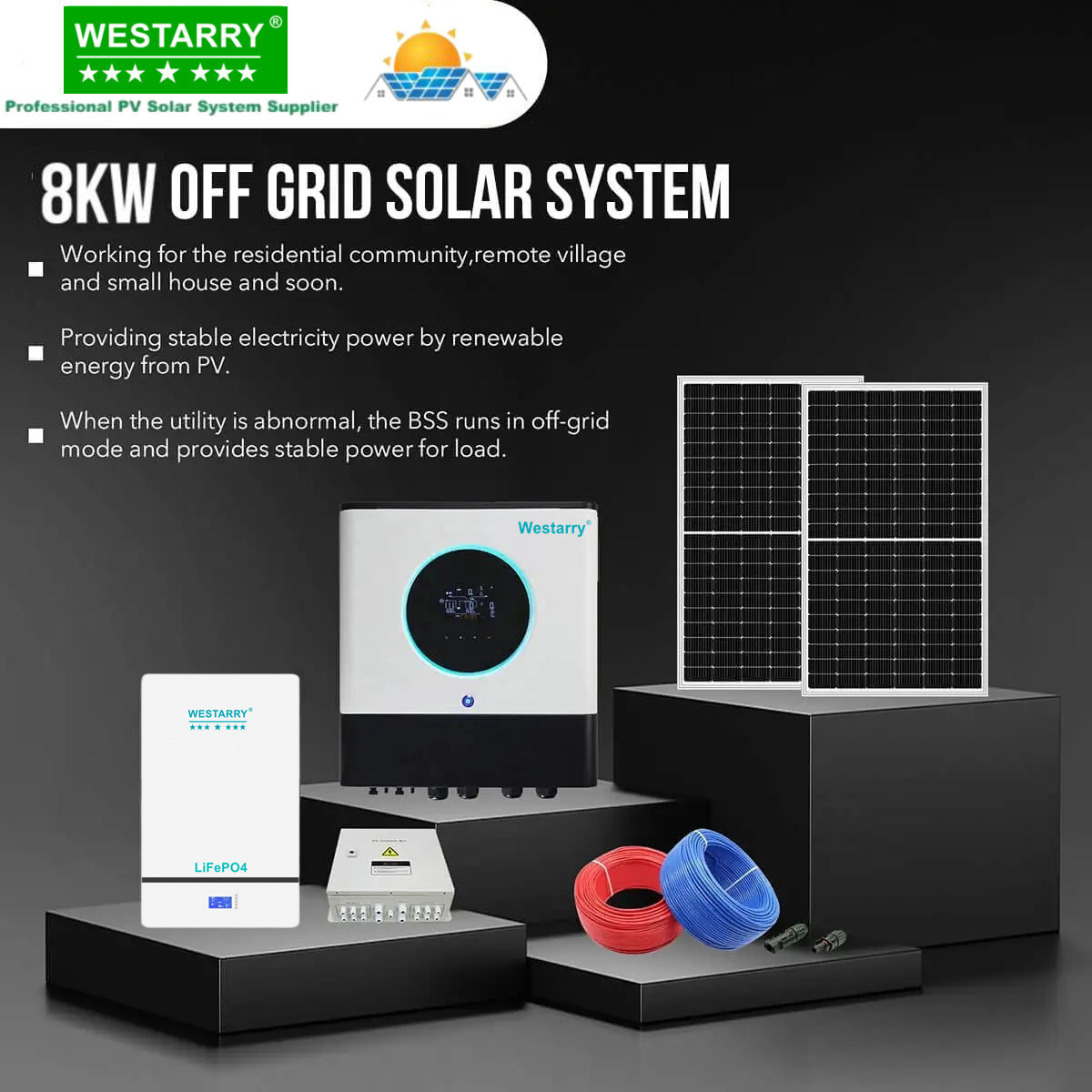

8KW OFF-GRID SOLAR SYSTEM
Westarry Solar Off grid Power System Home 8KW Solar Energy Panel Set for Household Appliances Commercail Industrial Use
**Working for the residential community,remote village and small house and soon.
**Providing stable electricity power by renewable energy from PV.
**When the utility is abnormal, the BSS runs in off-grid mode and provides sta ble power for load.
Tags：
No. | Product | Spec Description | Qty | ||
1 | Max-II-8000 8000VA/8000W 230VAC 48V MPPT Max.PV Array Power:4000W*2 | Max II Series *Off-Grid Hybrid Solar Inverter *Inbuilt MPPT solar controller 80A *Max.PV input voltage 500VDC,PV input power 8000w *WiFi built in monitoring *These inverters can work without batteries when there is the sun. Can parallel operation 6units | 1 | ||
2 | Half cell MONO 450W Solar panel（120） | Power:450W Cell range: JA solar cell 6*20(182*91mm) Size：1909*1134*35mm Packing：31pcs/pallet Pallet size：1910*1150*1300mm Material: 3.2mm high transittance low iron tempered glass+High effiency solar cells+EVA+TPT，Aluminium frame Junction box+MC4 cable | 20 | ||
3 | WT-PW-48200 Powerwall (51.2V200AH) | Rated capacity :200Ah Rated energy :10240Wh Nominal voltage :51.2V Internal resistance :≤40mΩ @1kHz AC Standard charging voltage :57.6V Recommended charging current :20.0A Maximum continuous charging current :50.0A Standard discharge current :50.0A Maximum continuous discharge current :100.0A End-of-discharge voltage :44.0V Communication :RS485/RS232 Cycle life :≥4000 times (0.5C charge/discharge) 70%DOD Charging :0～50℃ Discharge :-10～60℃ Shipping voltage: ≥51.2V | 1 | ||
4 |
| 50A | 2 Set | ||
5 | DC circuit breaker | 200A | 1 Set | ||

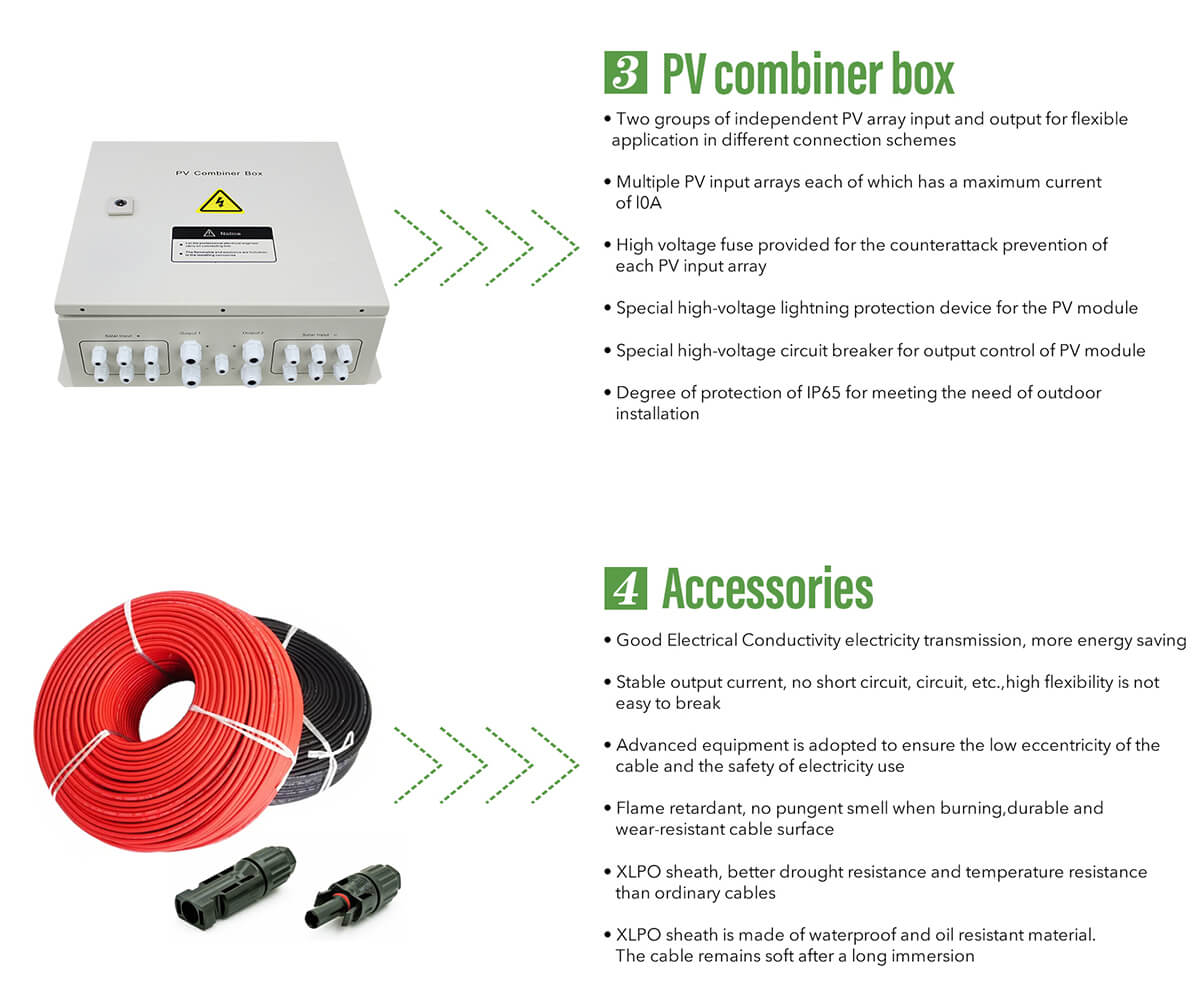

| 6 | Combine box | 6 INPUT+2 OUT PUT | 2 Set | ||
| 7 | Solar panel connecter | MC4 | 12 | ||
| 8 | Cables | ||||
| 9 | roof mount accessories |
