Type | Off Gird |
Max.Power | 5000W |
Output Voltage | EU And US Standard |
Certificate | TUV, ISO, CE |
Lead Time | 10 Days |
Payment | T/T, L/C,Western Union |
Warranty | 25 Years |

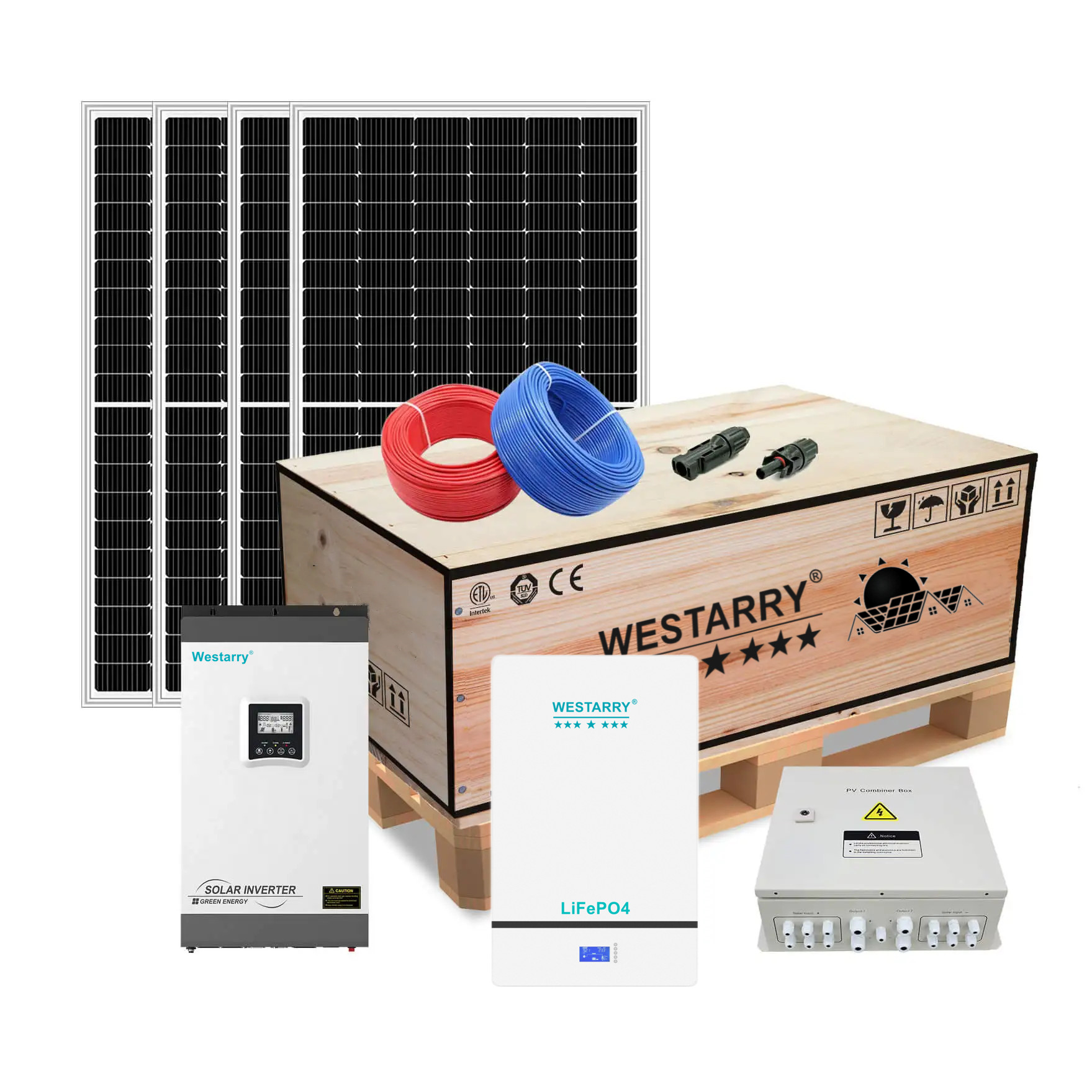

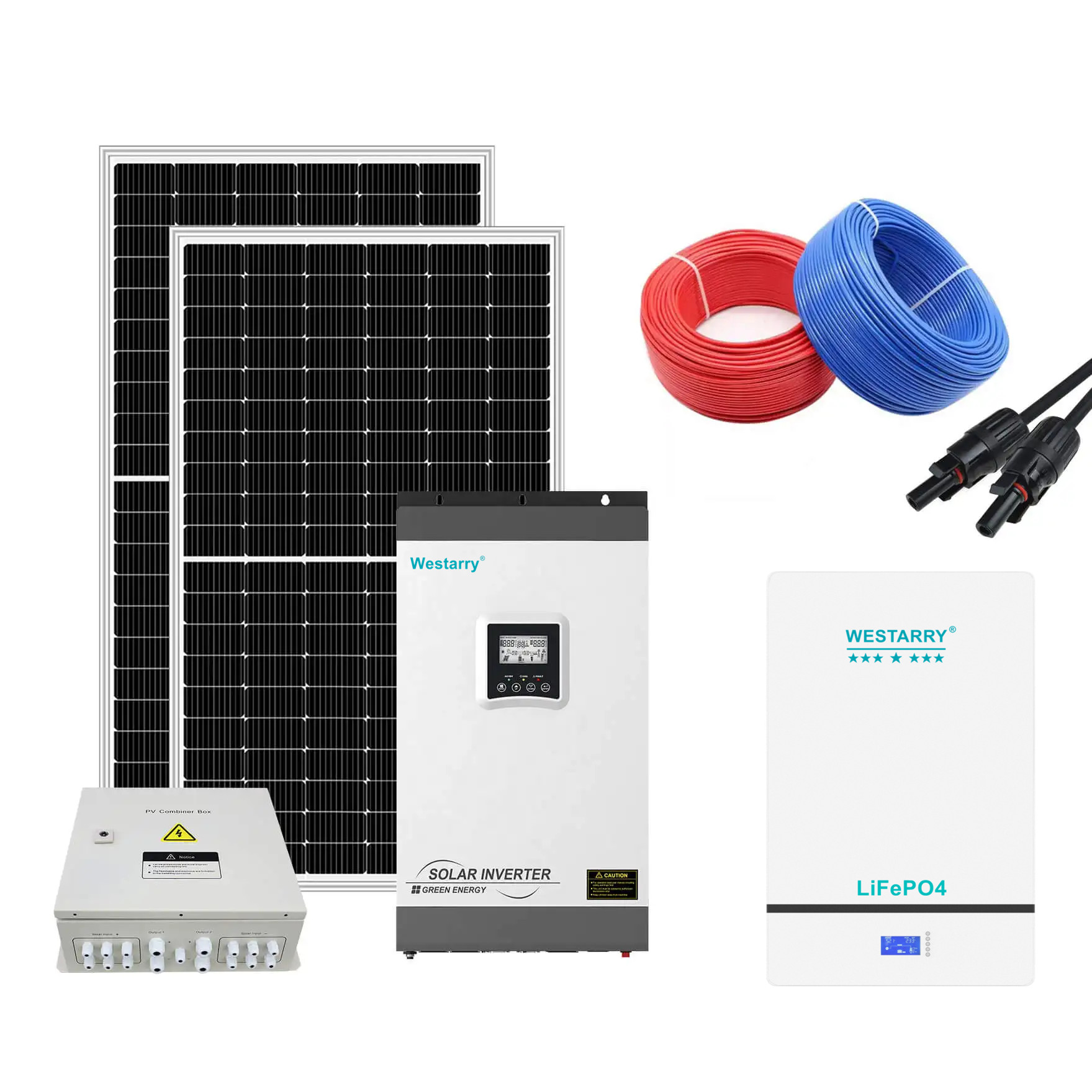

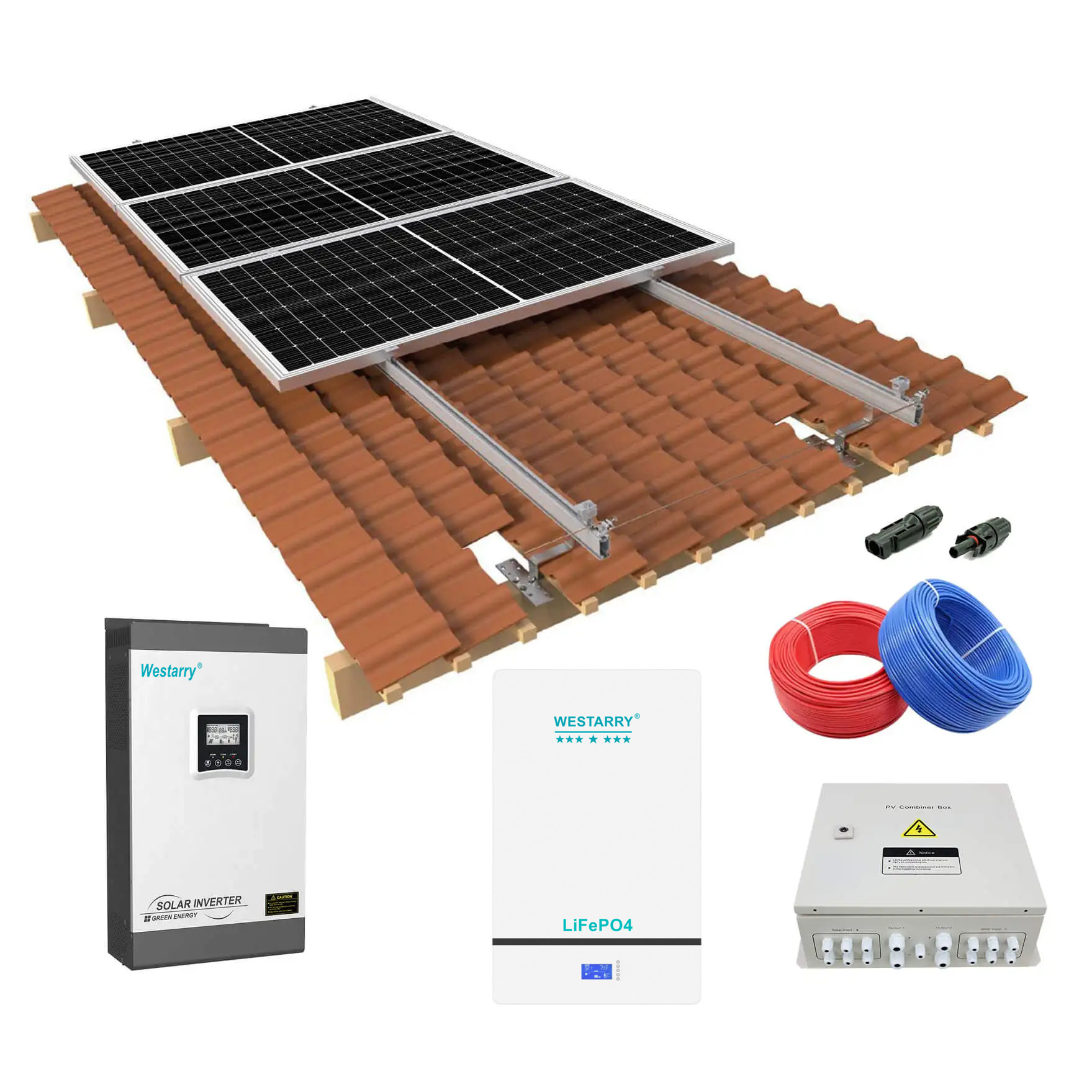

5KW OFF-GRID SOLAR SYSTEM
Westarry Solar Power System 5kw Off Gird Solar System Solar Power 5kw Off Grid System Kit For Home

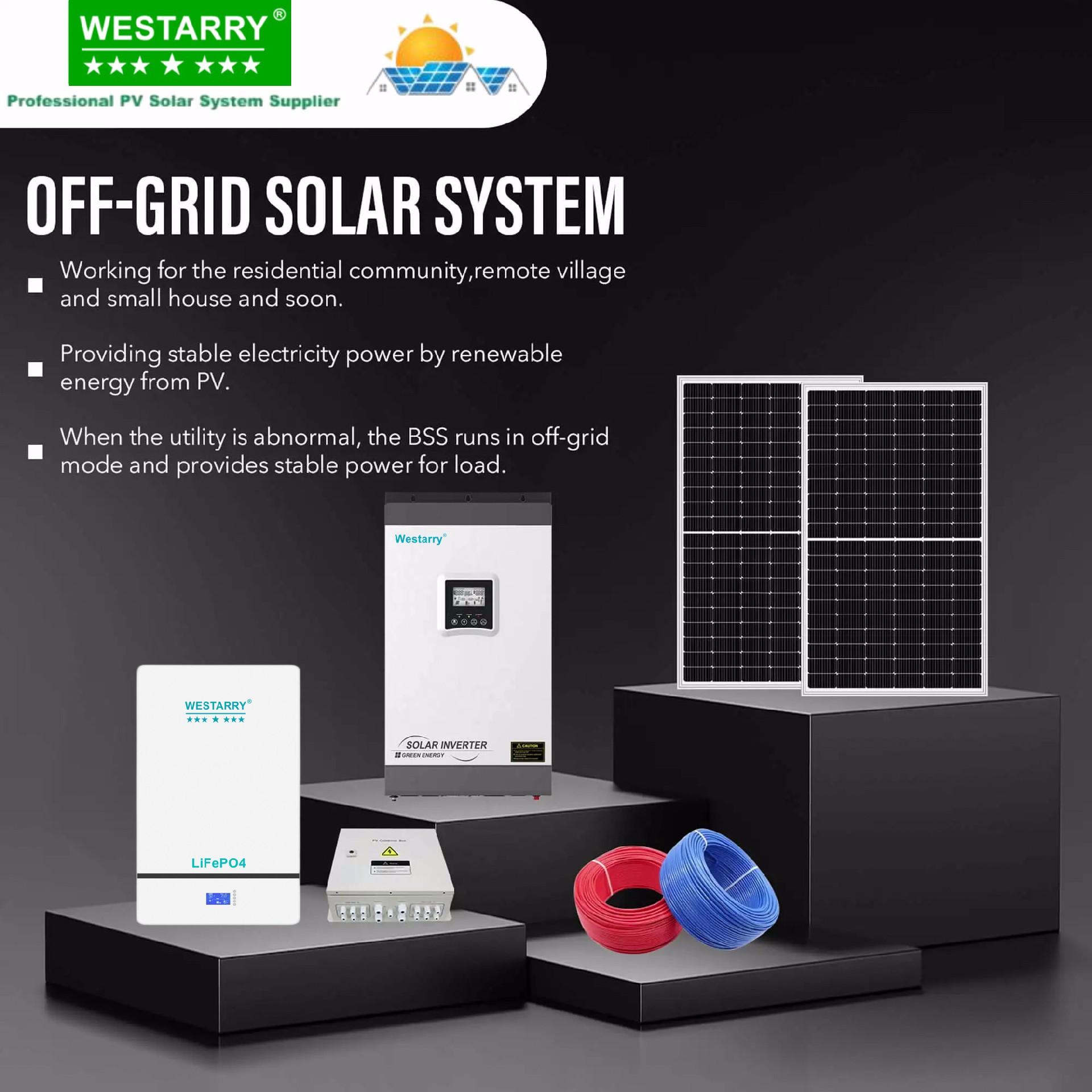

**Working for the residential community,remote village and small house and soon.
**Providing stable electricity power by renewable energy from PV.

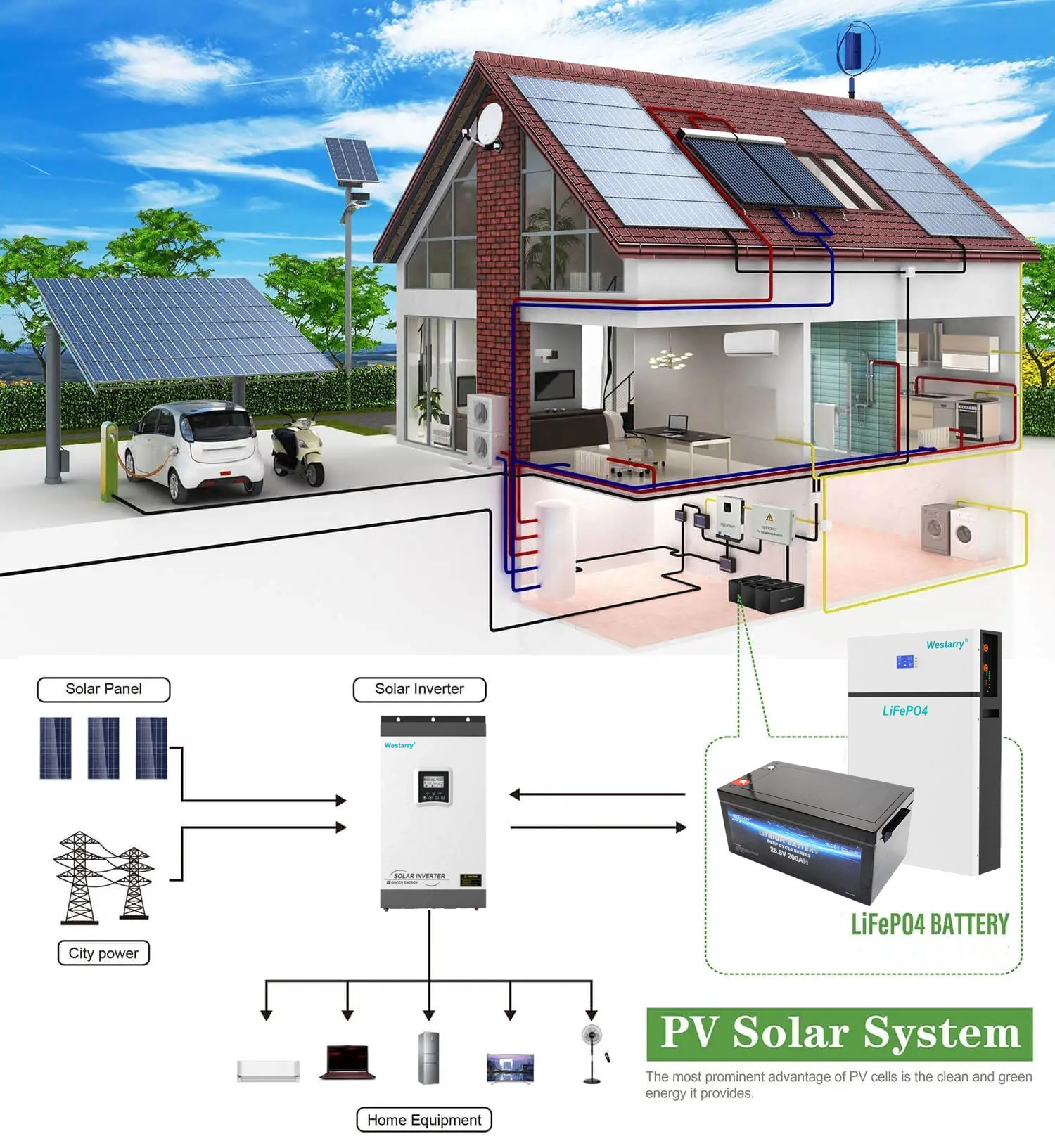

**When the utility is abnormal, the BSS runs in off-grid mode and provides sta ble power for load.
Tags：
No. | Product | Spec Description | Qty |

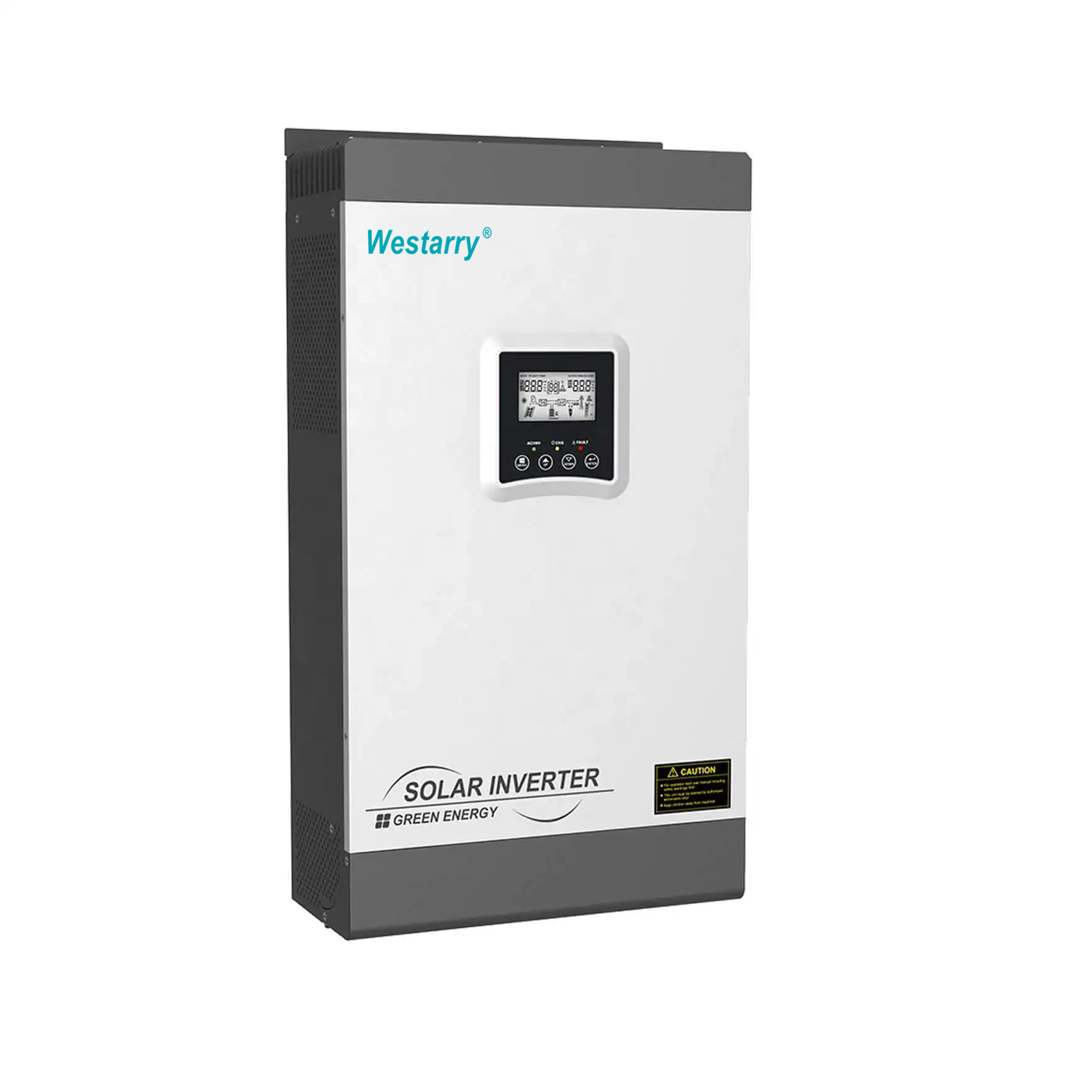

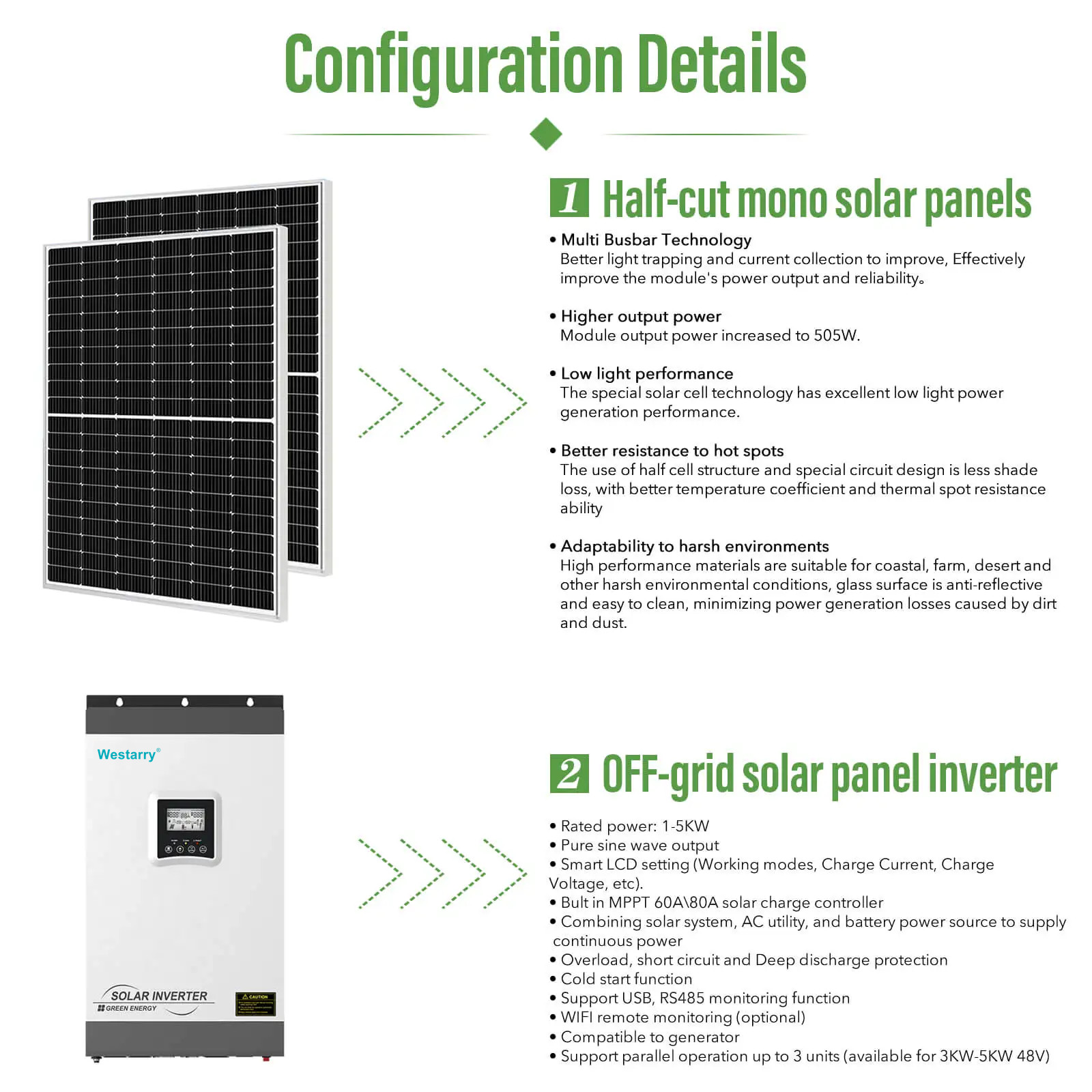

1 | PV18-5048 VPM Inverter | Default Battery System Voltage:48VDC Rated Power: 5000VA 5000W Voltage: 230VAC Maximum PV Array Open Circuit Voltage:150VDC Maximum Solar Charge Current: 80A Package Dimensions (W*H*D)(mm): 638*395*241 Gross Weight(kg): 14 | 1 |
2 | Mono Perc Solar Panel | Power:450W Cell range: JA solar cell 6*20(182*91mm) Size：1909*1134*35mm Pallet size：1910*1150*1300mm Material: 3.2mm | 12 |

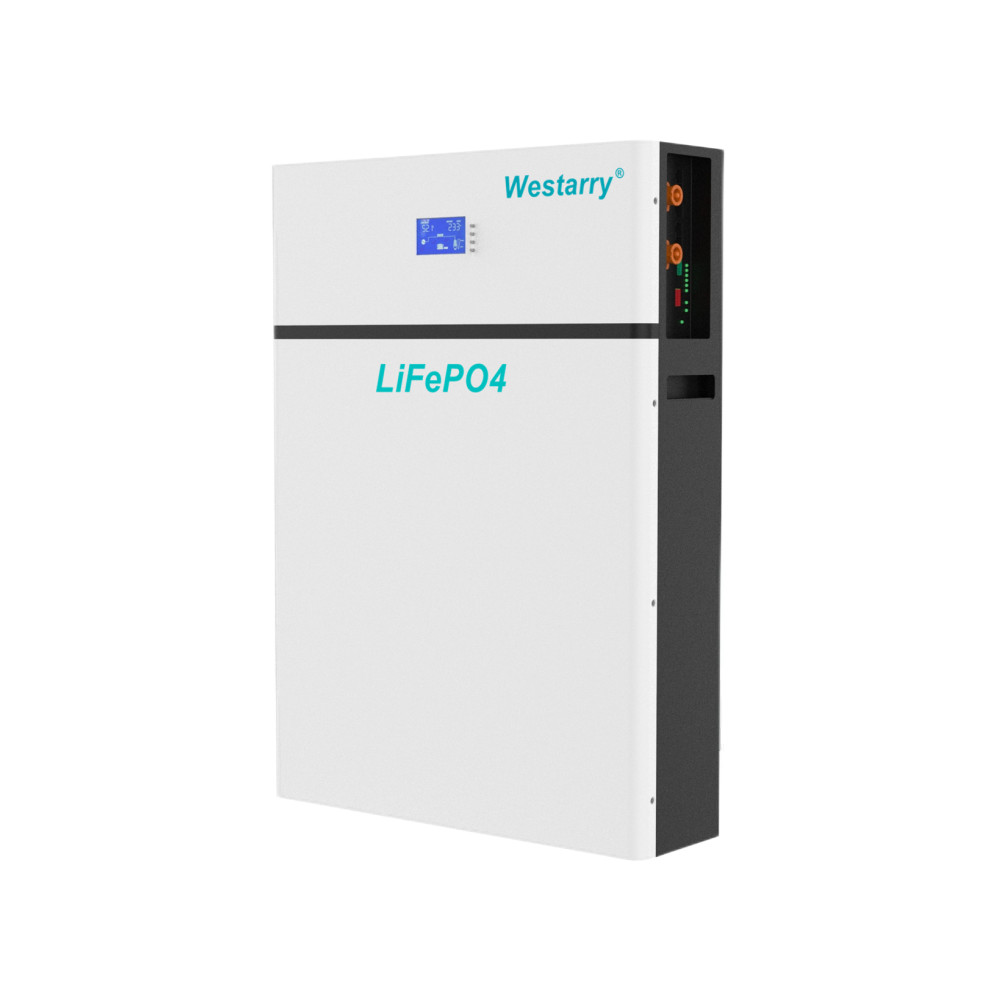

3 | WT-PW-48100 Powerwall | Normal capacity:100Ah Nominal voltage:51.2V Nominal energy:5120Wh Efficiency：>96% Module Parallel:up to 3 packs Weight:44 KG Size:580 x 400 x 145mm | 1 |
4 | AC circuit breaker | 20a | 2 |
5 | DC circuit breaker | 125A | 1 |

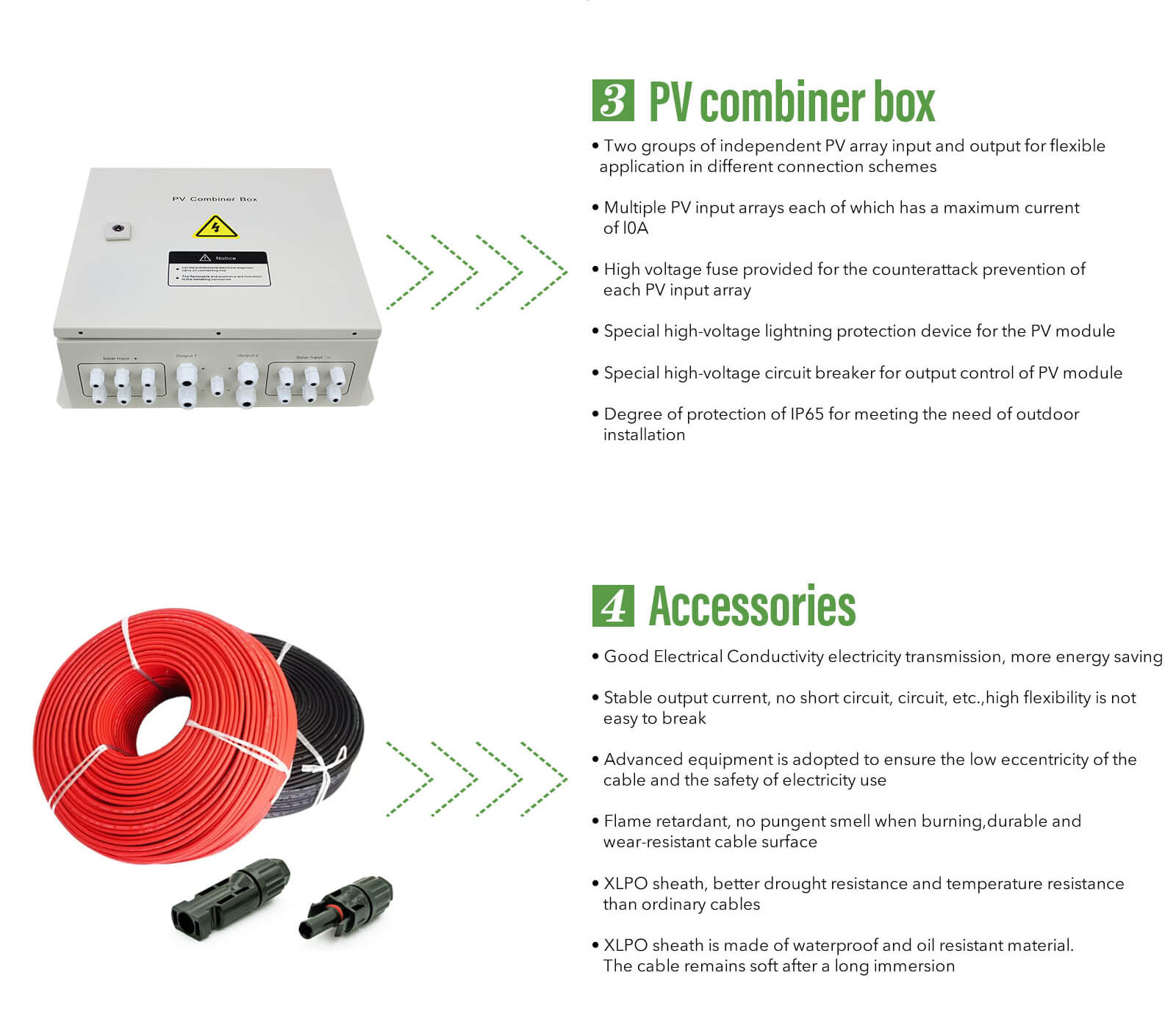

6 | Combine box | 2 INPUT+2 OUT PUT | 1 |
| 7 | Solar panel connecter | MC4 | 1 Set |
| 8 | Roof mount accessories | 1 Set |
