Type | Off Gird |
Max.Power | 8000W |
Output Voltage | EU And US Standard |
Certificate | TUV, ISO, CE |
Lead Time | 10 Days |
Payment | T/T, L/C,Western Union |
Warranty | 25 Years |

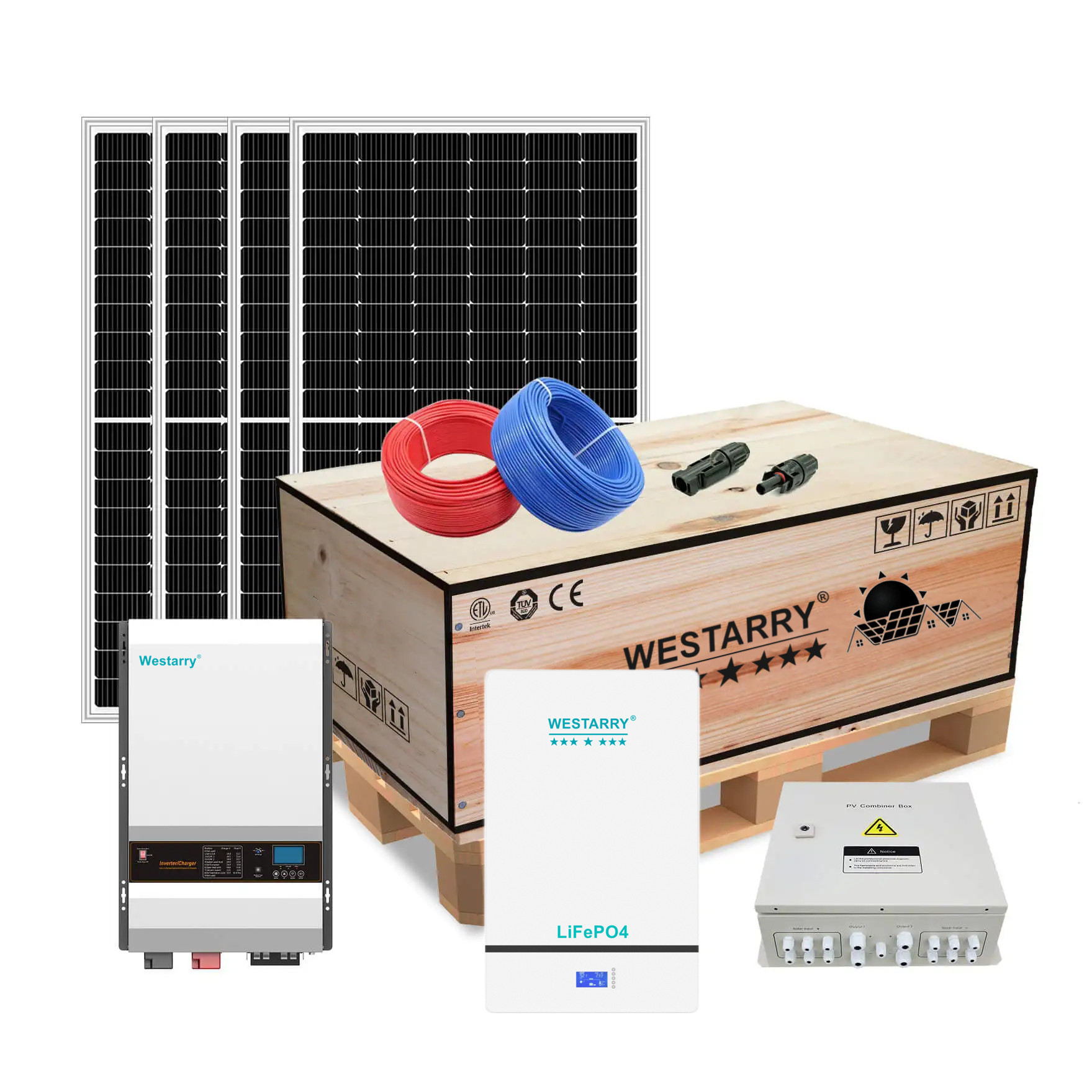

8KW OFF-GRID SOLAR SYSTEM
Westarry Solar Off grid Power System Home 8KW Solar Energy Panel Set for Household Appliances Commercail Industrial Use

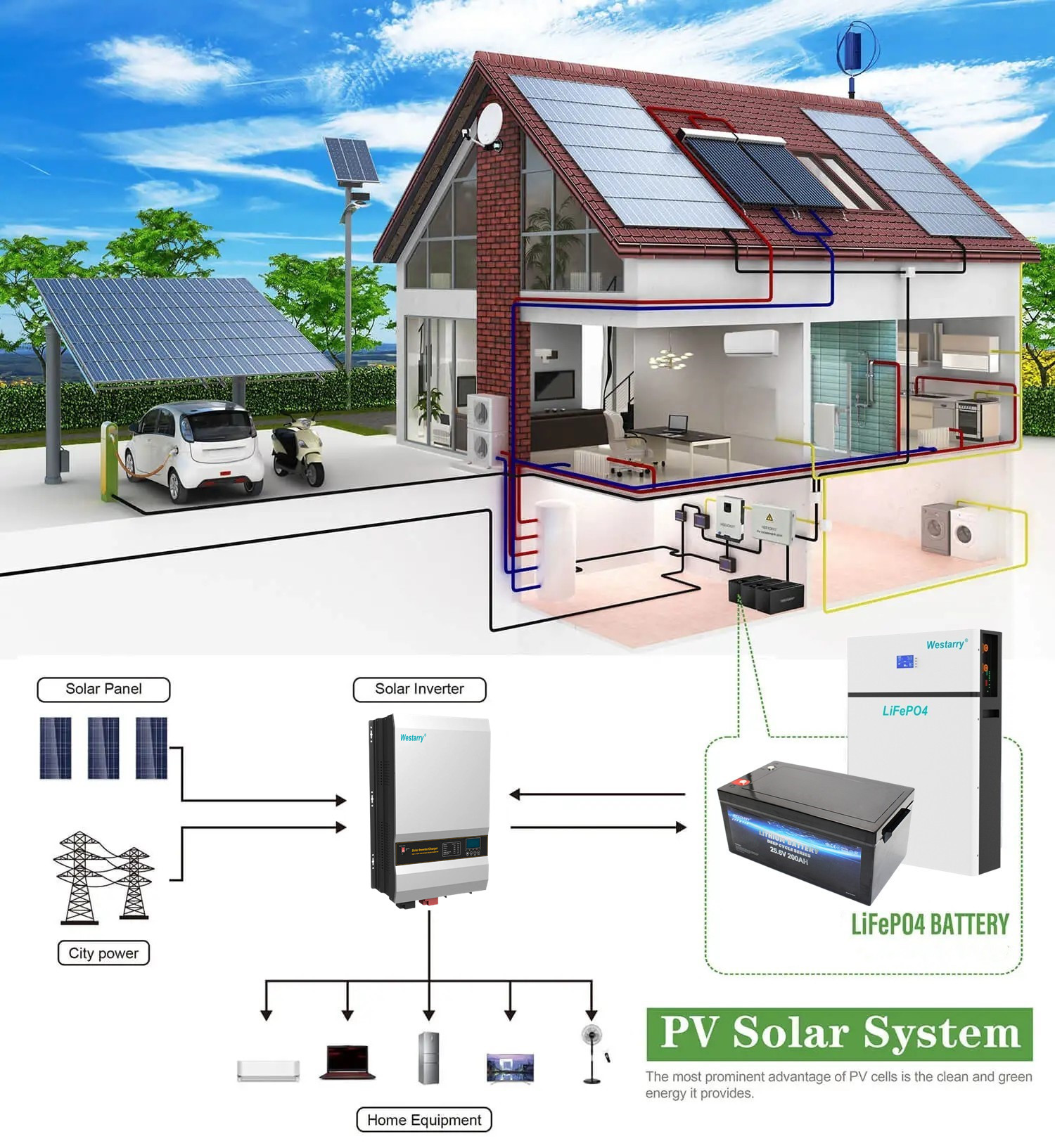

**Working for the residential community,remote village and small house and soon.
**Providing stable electricity power by renewable energy from PV.
**When the utility is abnormal, the BSS runs in off-grid mode and provides sta ble power for load.
Tags：
No. | Product | Spec Description | Qty | ||

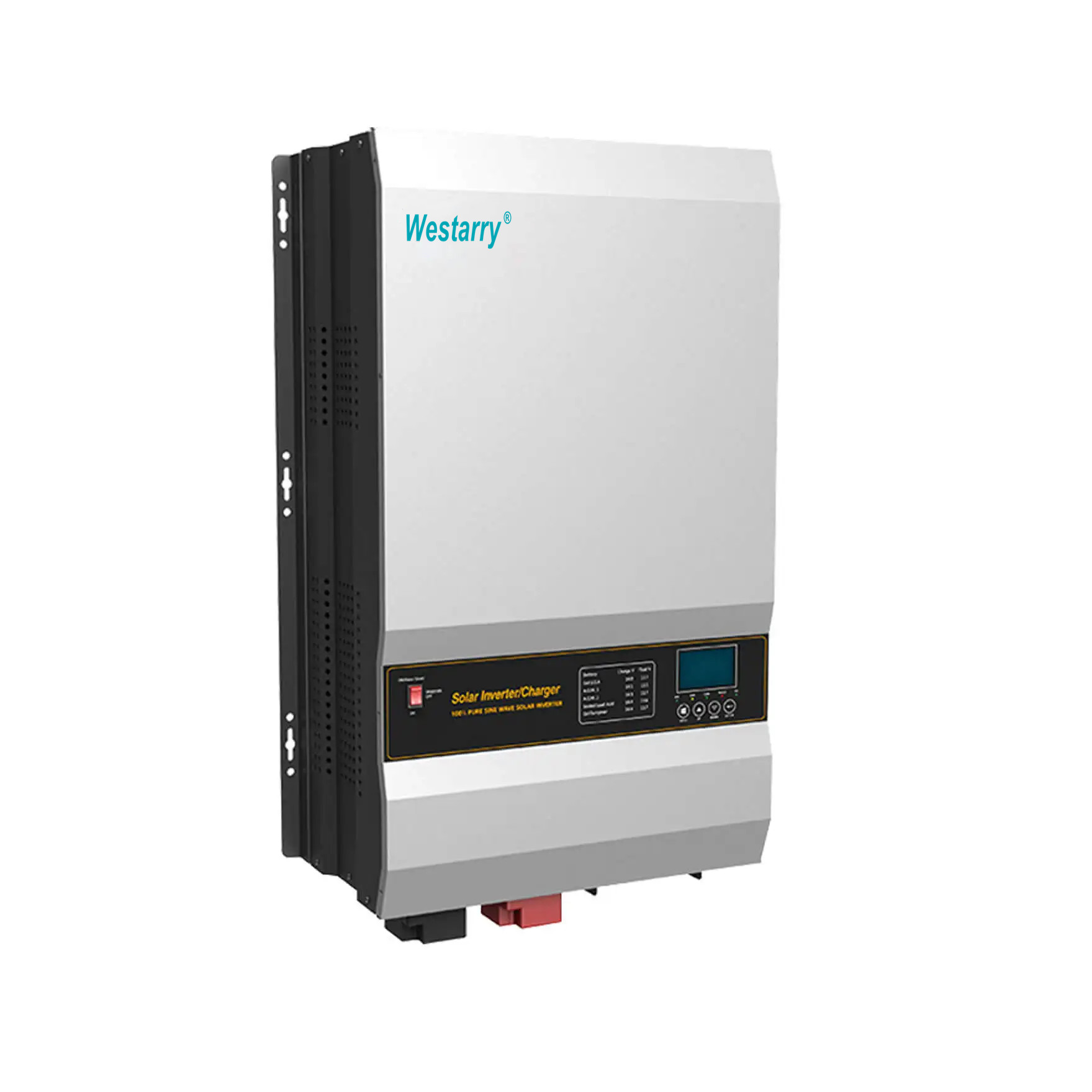

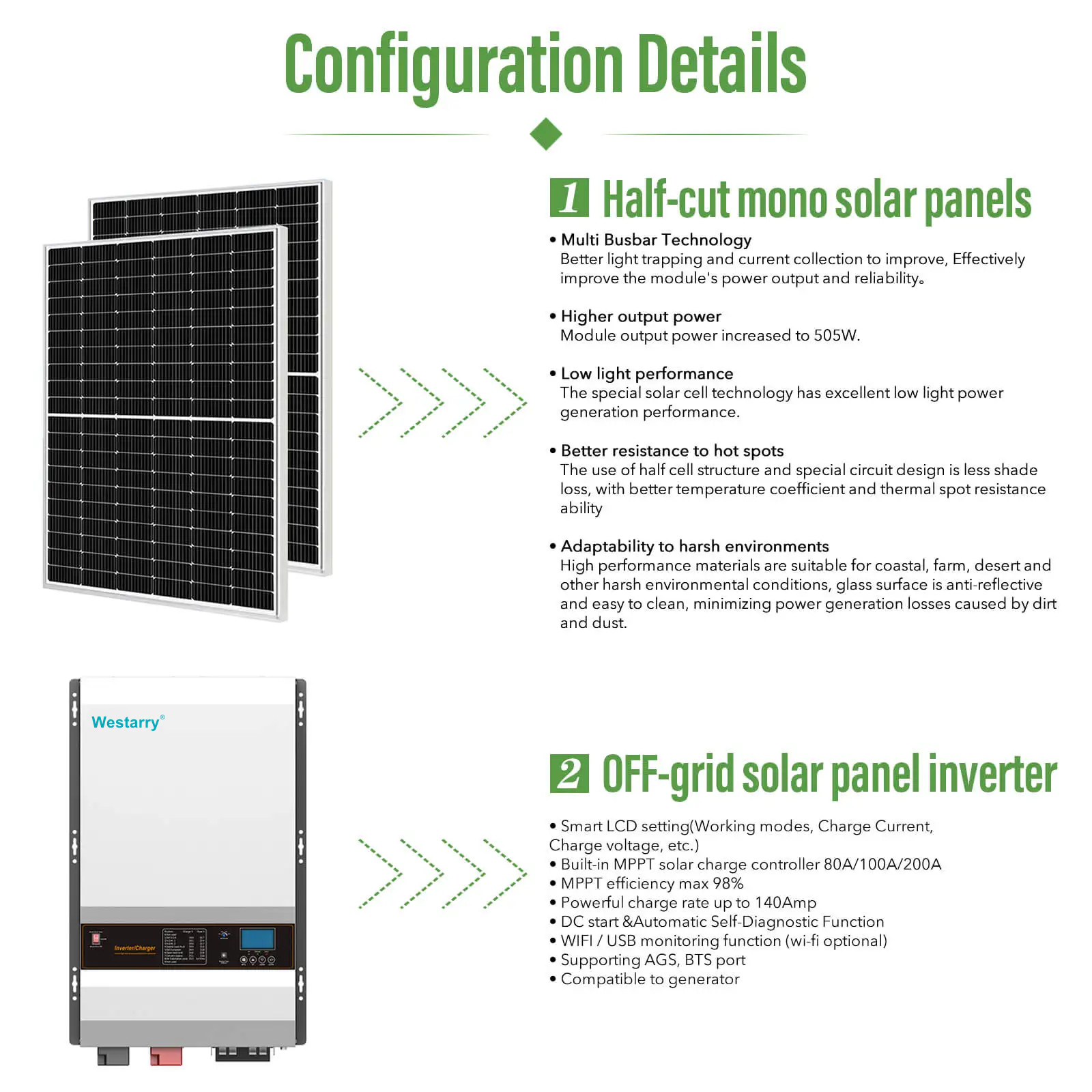

1 | WT35 PRO- 8K Inverter | Default Battery System Voltage:48VDC Rated Power: 5200VA 5200W Voltage: 230VAC Maximum PV Array Open Circuit Voltage:450VDC Maximum Solar Charge Current: 80A Package Dimensions (W*H*D)(mm): 628*425*251 Gross Weight(kg): 14 | 1 | ||
2 | Half cell MONO 450W Solar panel（120） | Power:450W Cell range: JA solar cell 6*20(182*91mm) Size：1909*1134*35mm Packing：31pcs/pallet Pallet size：1910*1150*1300mm Material: 3.2mm high transittance low iron tempered glass+High effiency solar cells+EVA+TPT，Aluminium frame Junction box+MC4 cable | 20 | ||
3 | WT-PW-48200 Powerwall | Rated energy :10240Wh Nominal voltage :51.2V Internal resistance :≤40mΩ @1kHz AC Standard charging voltage :57.6V Recommended charging current :20.0A Maximum continuous charging current :50.0A Standard discharge current :50.0A Maximum continuous discharge current :100.0A End-of-discharge voltage :44.0V Communication :RS485/RS232 Cycle life :≥4000 times (0.5C charge/discharge) 70%DOD | 1 | ||
4 |
| 50A | 2 Set | ||
5 | DC circuit breaker | 200A | 1 Set | ||

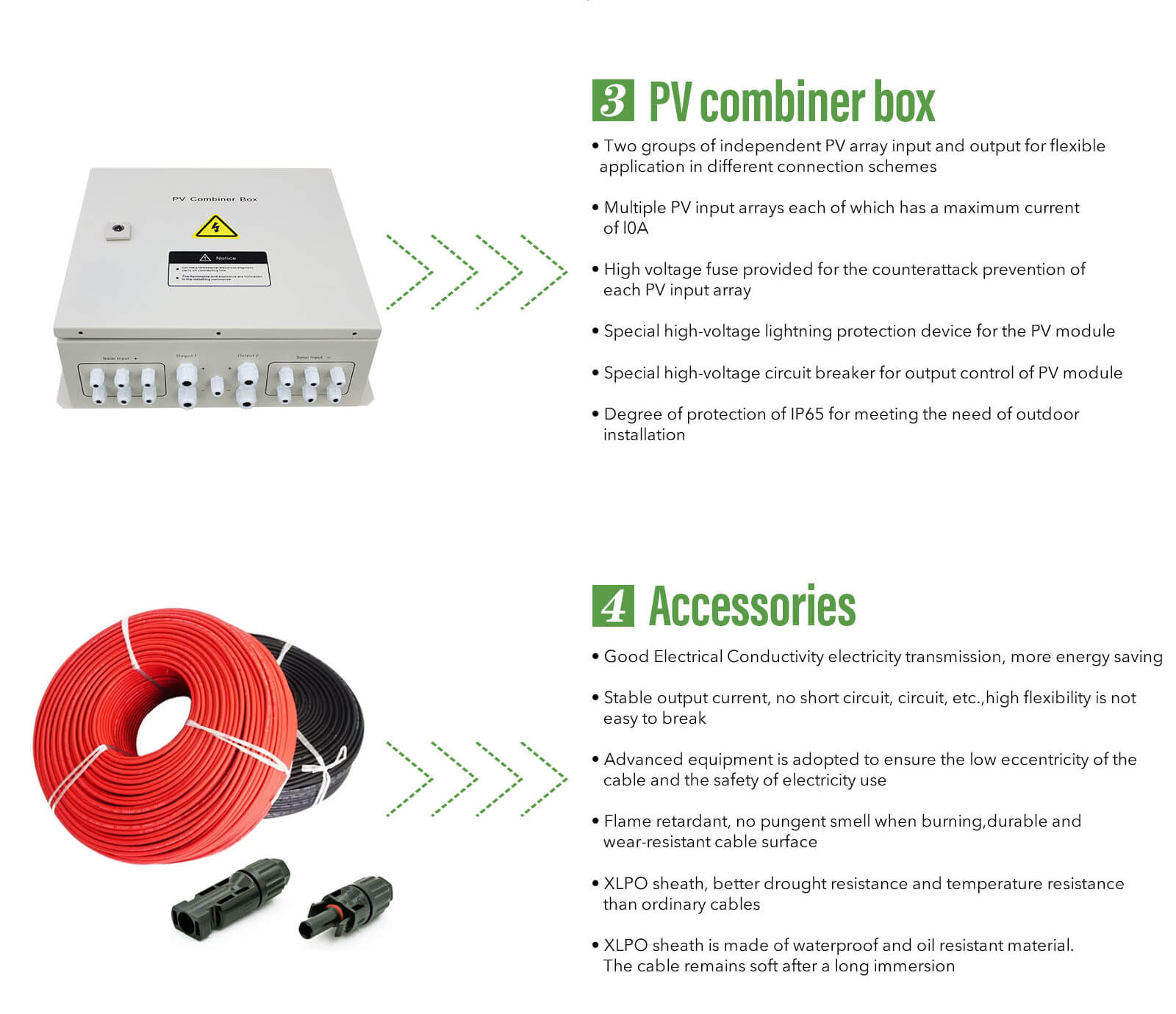

| 6 | Combine box | 6 INPUT+2 OUT PUT | 2 Set | ||
| 7 | Solar panel connecter | MC4 | 18 | ||
| 8 | Cables | ||||

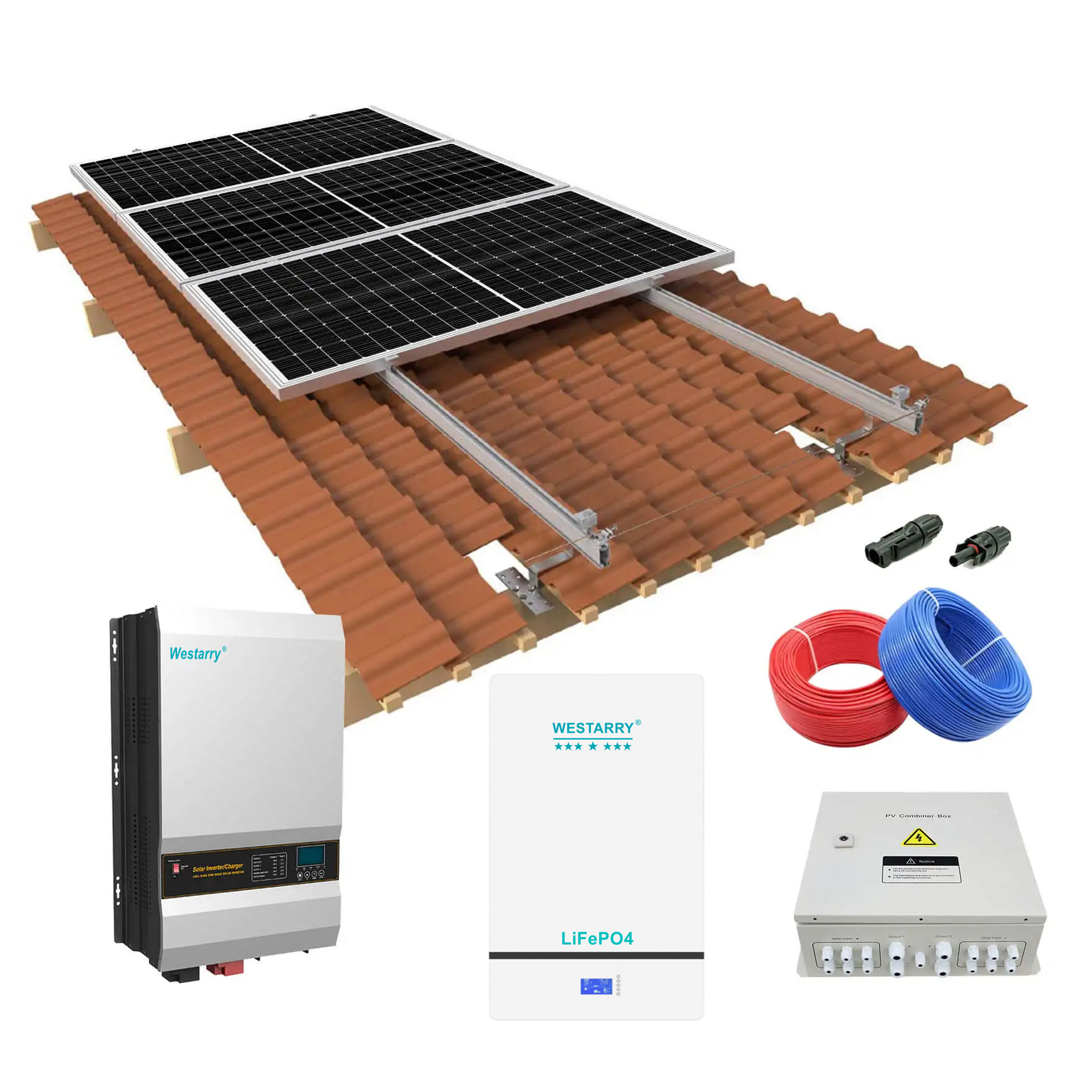

| 9 | roof mount accessories |
