INTRODUCTION

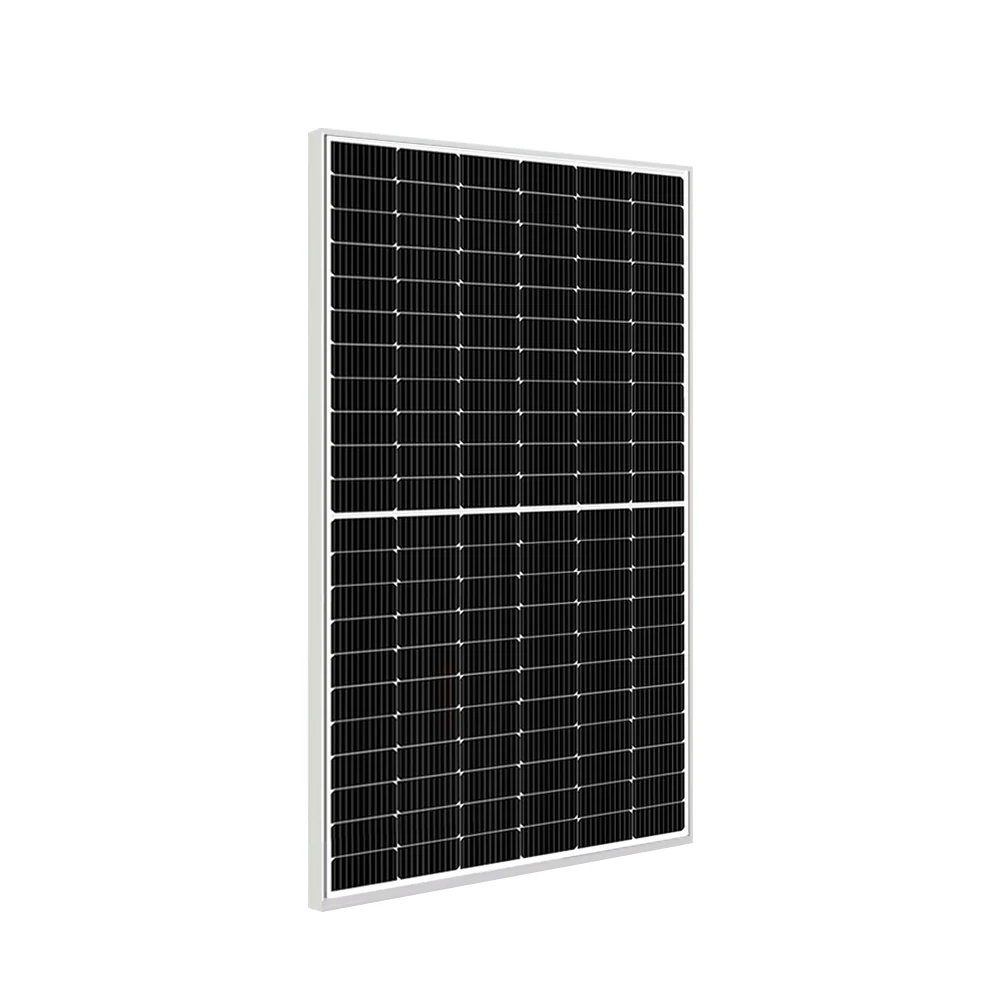

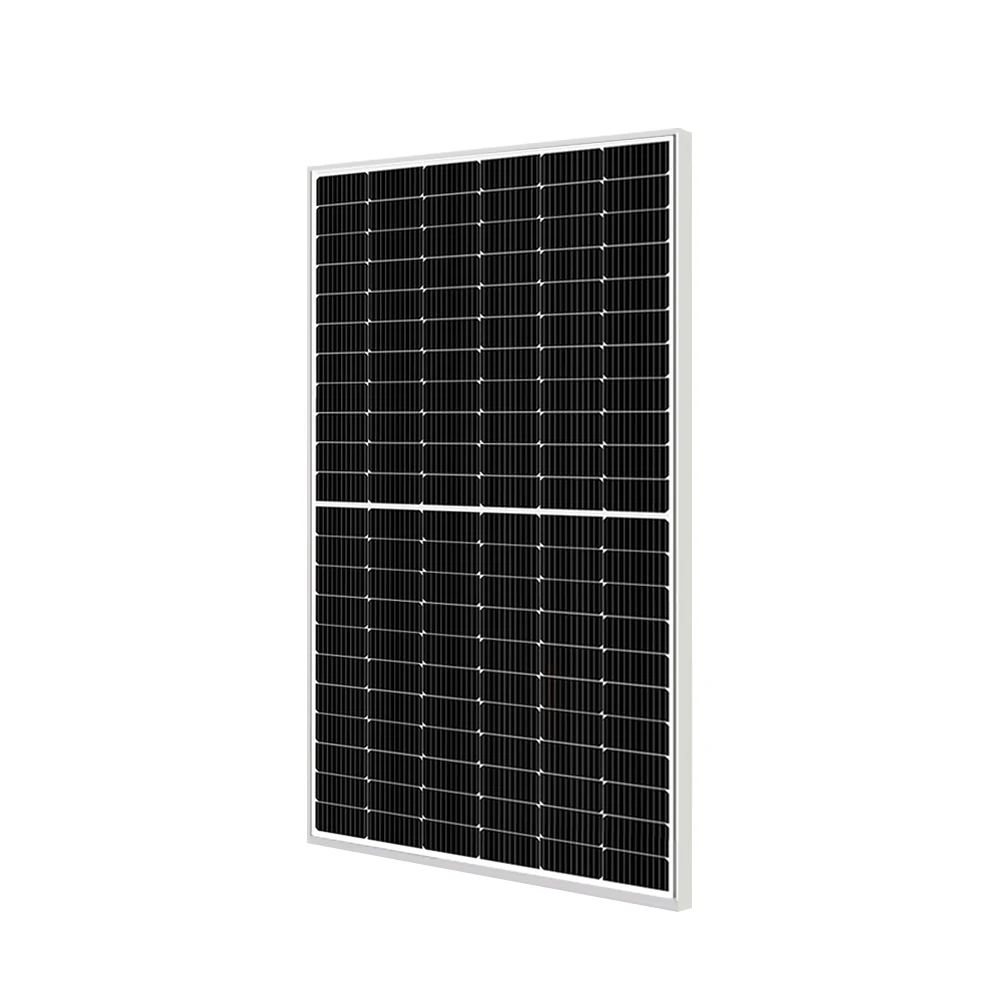

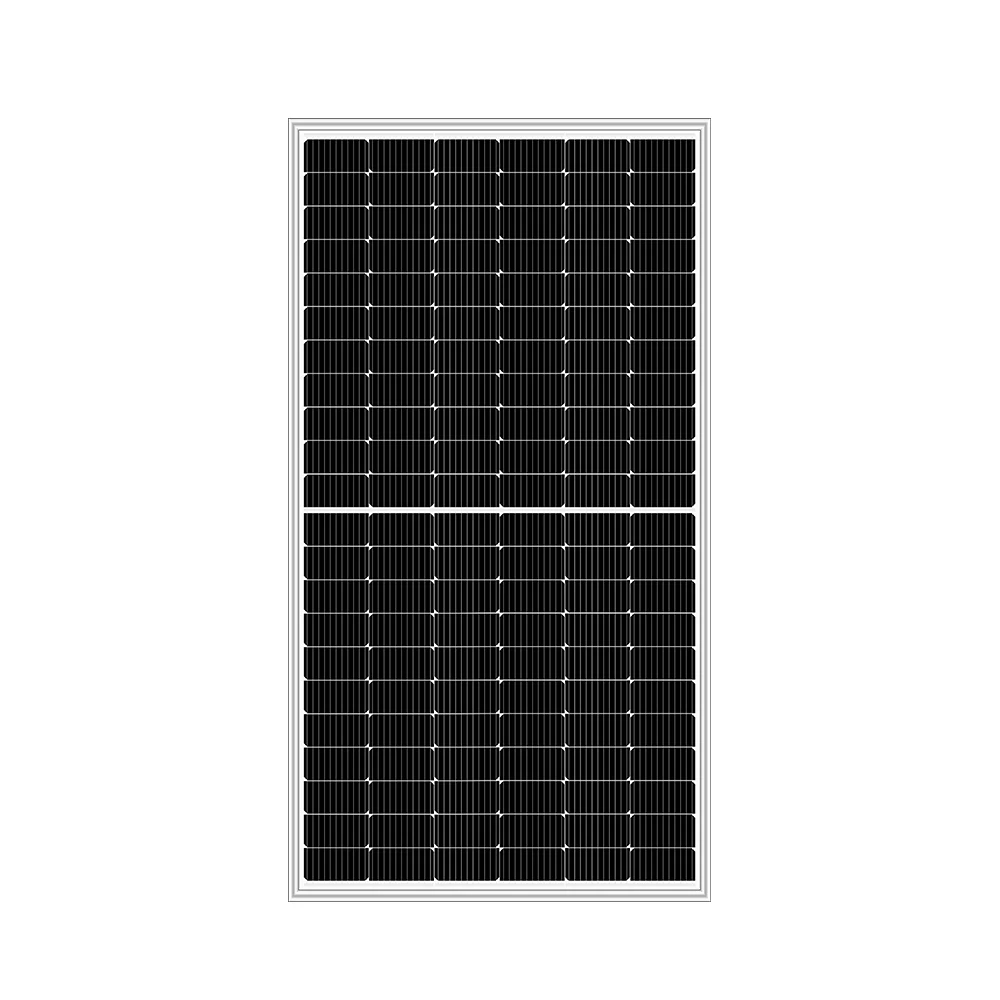

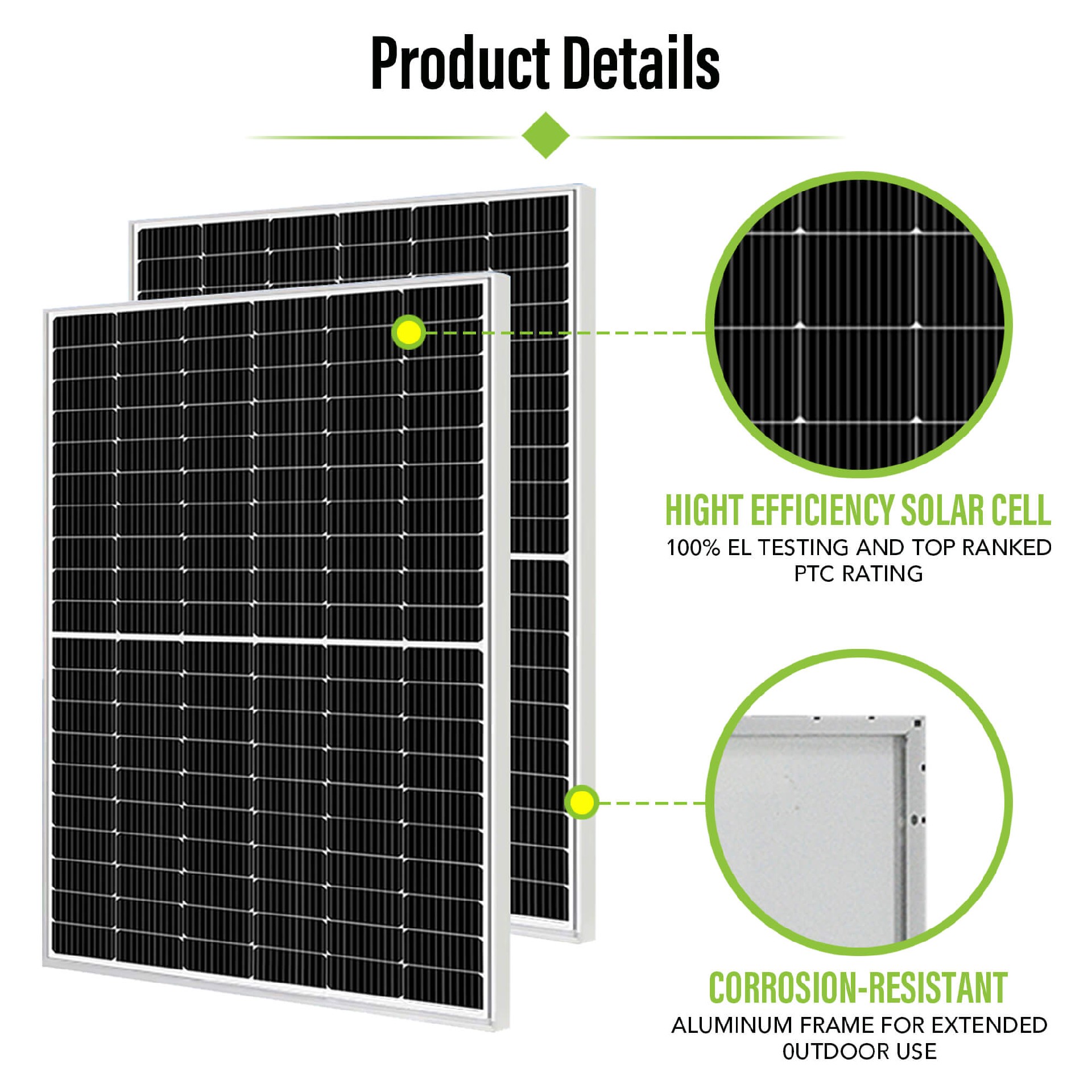

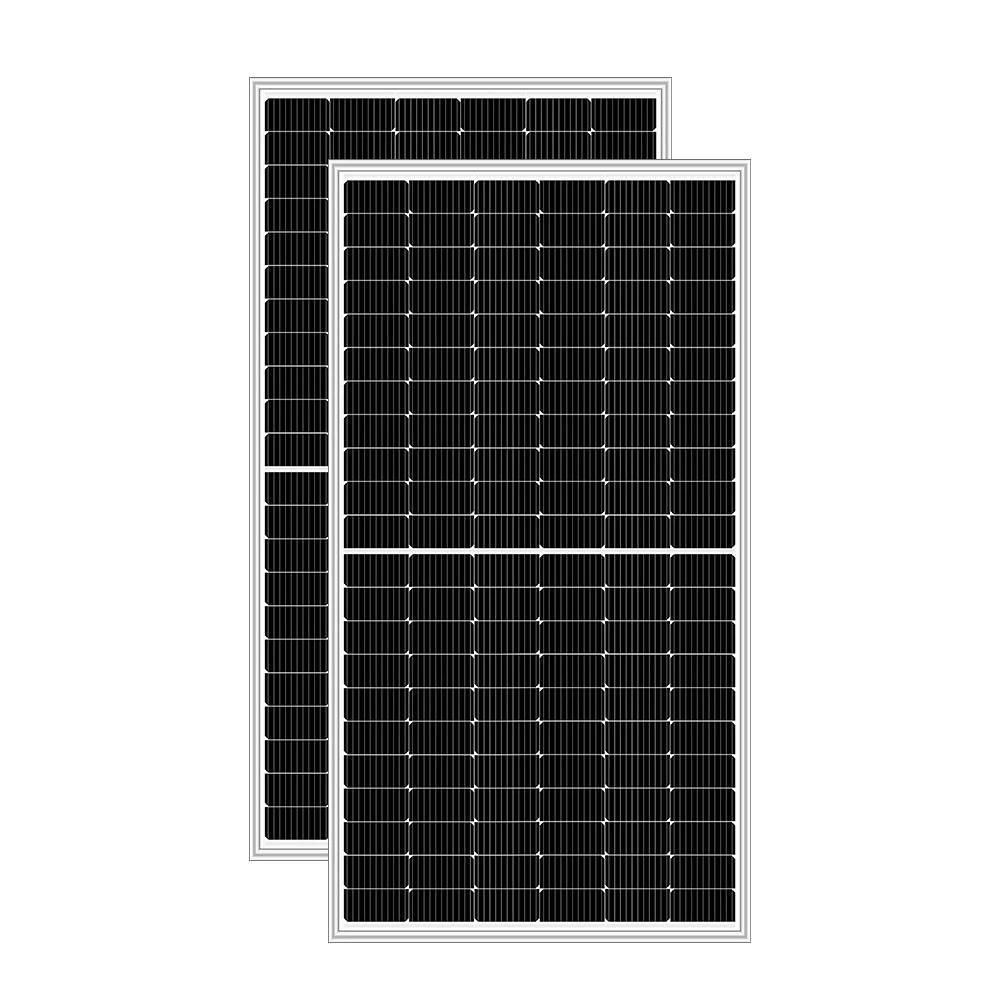

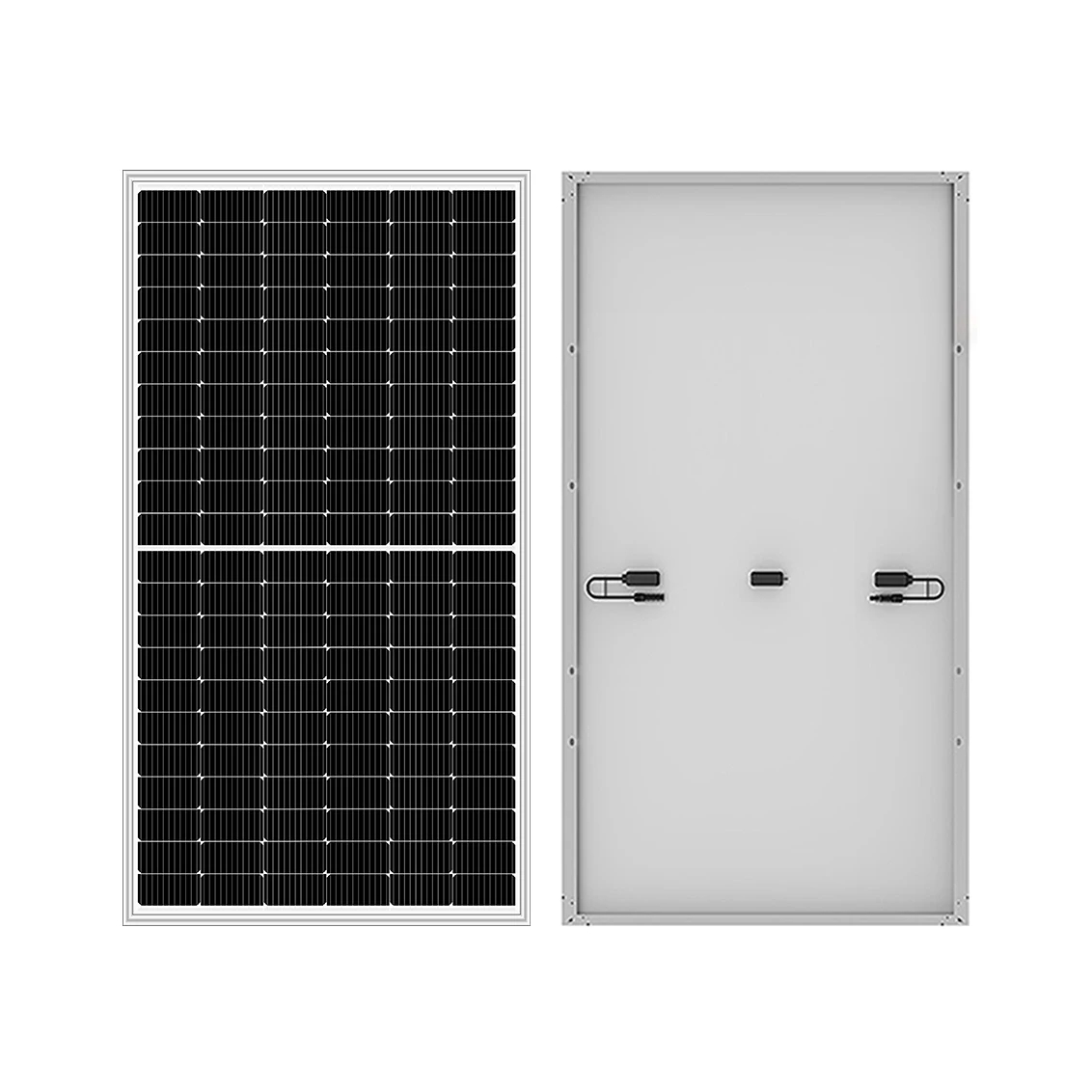

MONO half-cut single / double glass module, assembled with
multi-busbar PERC technique and half-cut structure, which can not only
absorb the energy from the front of the module, but also absorb the
reflected light and the scattered light from the back, offer the advantages
of higher power output, reduce shading effect on the energy generation,
enhance the mechanical load bearing capacity as well.
Comprehensive Certificates
●IEC61215,1EC61730
●IS09001:2015 Quality management systems
●IS045001:Environmental management systems
●IS045001:2018 Occupational health and safety
Tags：
Specifications | |
Solar Cel(Type/Size) | MONO(182mm) |
Solar Cells Number | 132pcs(6*22) |

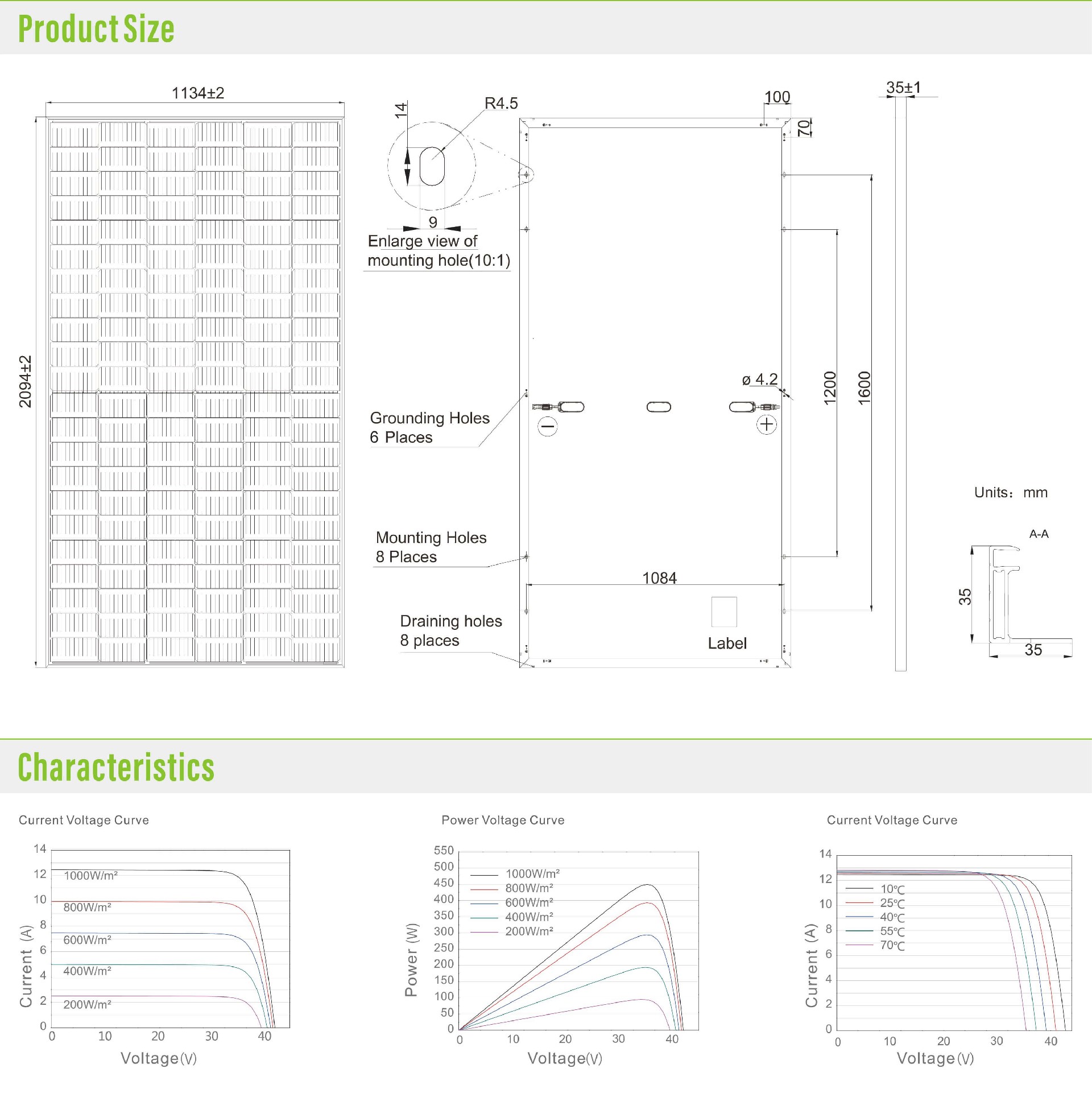

Dimensions | 2094x1134x35mm |
Weight | 26.2Kg/Pcs |
Structure | 3.2 Glass + EVA film + Back |

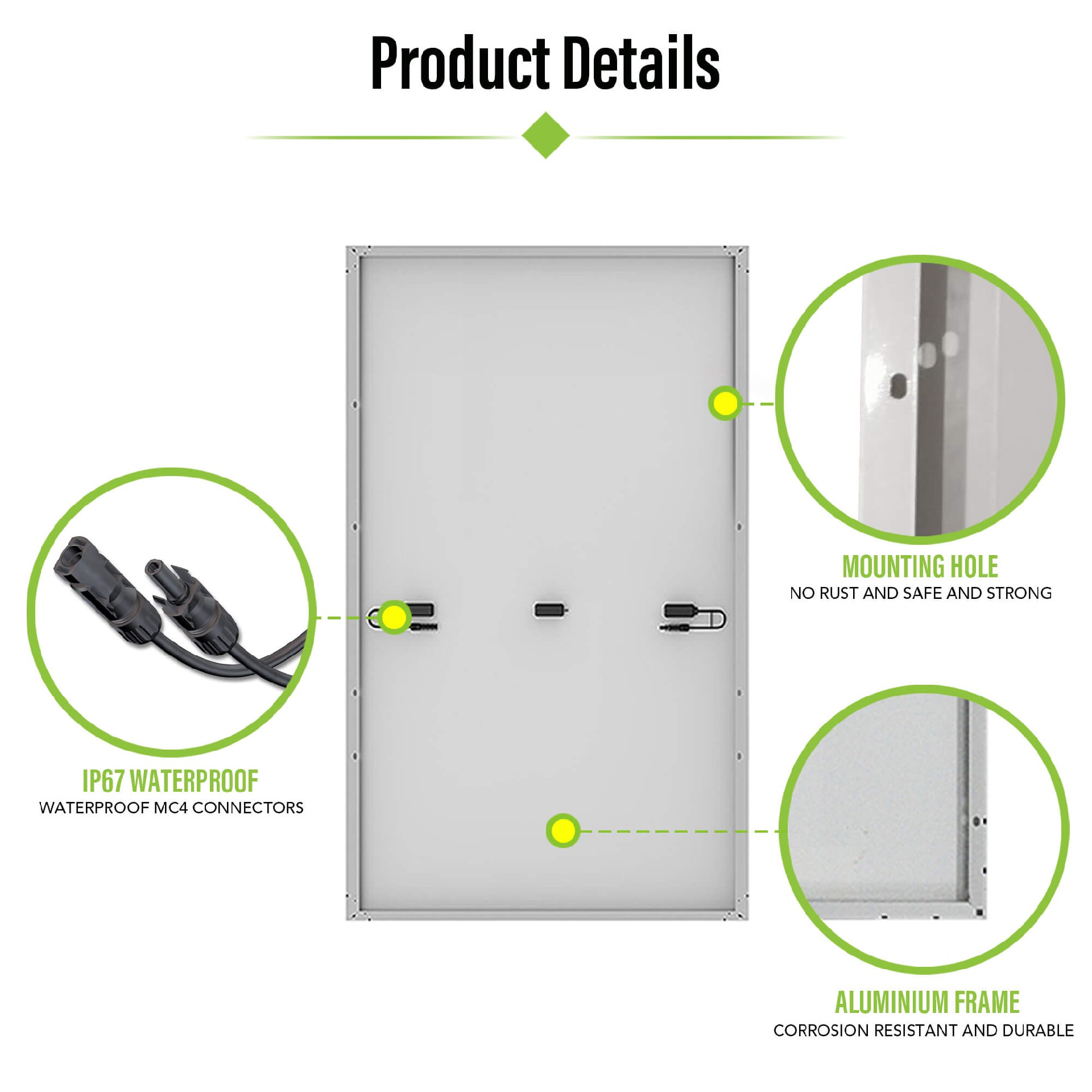

Frame | Anodized Aluminum Alloy |

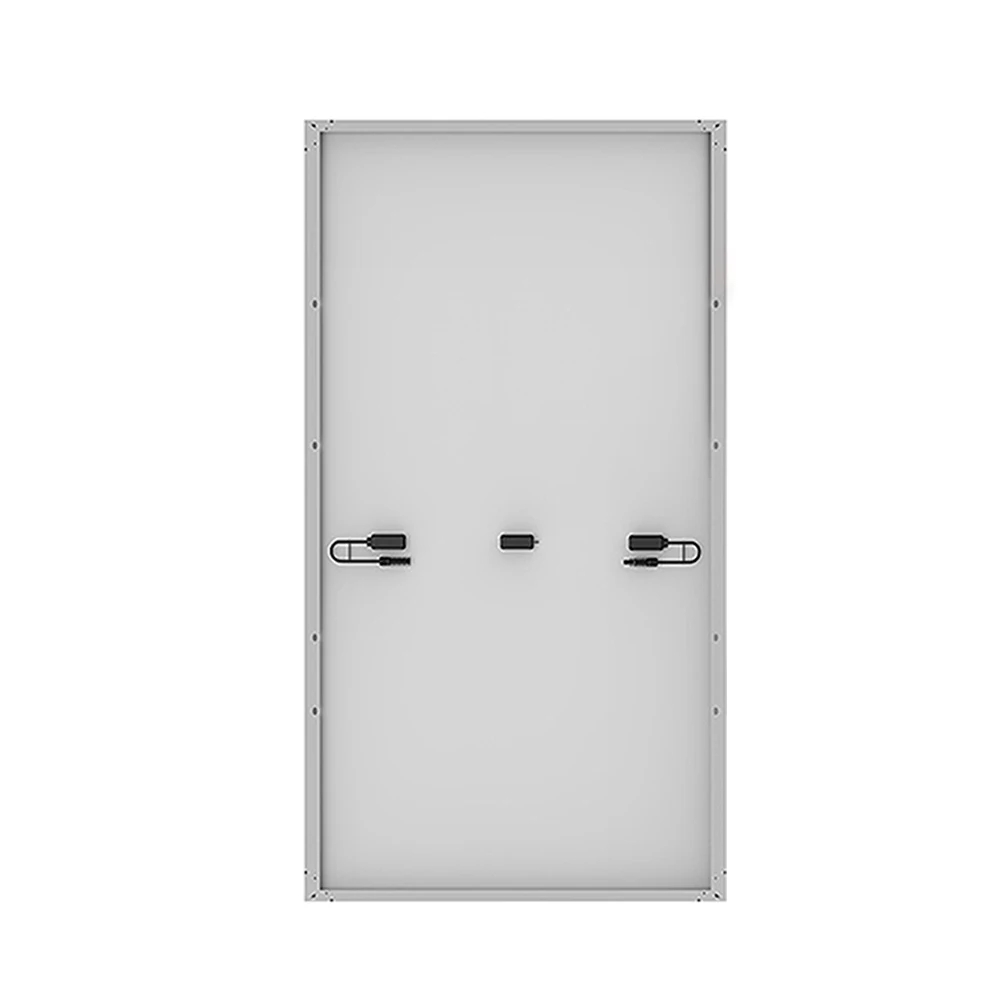

Junction Box | IP68 3* Bypass Diode |
Cable Cross Section Size | 4.0mm2 ,(+ )300mm/(-)400mm |
Mechanical Load | Front 5400Pa/Back 2400Pa |
Packing Number | 31Pcs/Pallet |
Packing Volume | 3.100Cbm/Pallet |
40'HQ Container | 682Pcs |
Electrical Parameters at STC | ||||||
Module Type | WTD480P | WTD485P | WTD490P | WTD495P | WTD500P | WTD505P |
| Rate Maximum Power( Pmax/W) | 480 | 485 | 490 | 495 | 500 | 505 |
Module Efficiency(%) | 20.20 | 20.24 | 20.60 | 20.80 | 21.10 | 21.30 |
Open Circuit Volatge(Voc/V) | 45.02 | 45.18 | 45.33 | 45.49 | 45.65 | 45.79 |
Short Circuit Current(Isc/A) | 13.66 | 13.73 | 13.79 | 13.86 | 13.92 | 13.99 |
Voltage at Pmax(Vmp/V) | 37.71 | 37.87 | 38.02 | 38.18 | 38.33 | 38.50 |
Current at Pmax(Imp/A) | 12.73 | 12.81 | 12.89 | 12.97 | 13.05 | 13.12 |
Power Tolerance | 0~+5w | |||||
Temperature Coefficent of Isc . | +0.046%°C | |||||
Temperature Coefficent of Voc | -0.276%°C | |||||
Temperature Coefficent of Pmax | -0.350%°C | |||||
STC | Irradiance 1000W/m2 Cell Temperature 25°C AM1.5 | |||||
Remark: Electrical data in this catalogue does not refer to a single module, and it's not part of the offer. It only serves for the comparison among different module types. | ||||||
Electrical Parameters at NOCT | ||||||
Module Type | WTD480P | WTD485P | WTD490P | WTD490P | WTD500P | WTD505P |
Rate Maximum Power( Pmax/W) | 363 | 366 | 370 | 373 | 377 | 381 |
Open Circuit Voltage(Voc.V) | 42.16 | 42.31 | 42.46 | 42.60 | 42.75 | 42.89 |
