Suitable for use in USA/Puerto Rico,and Canada where split phase power standard is used.

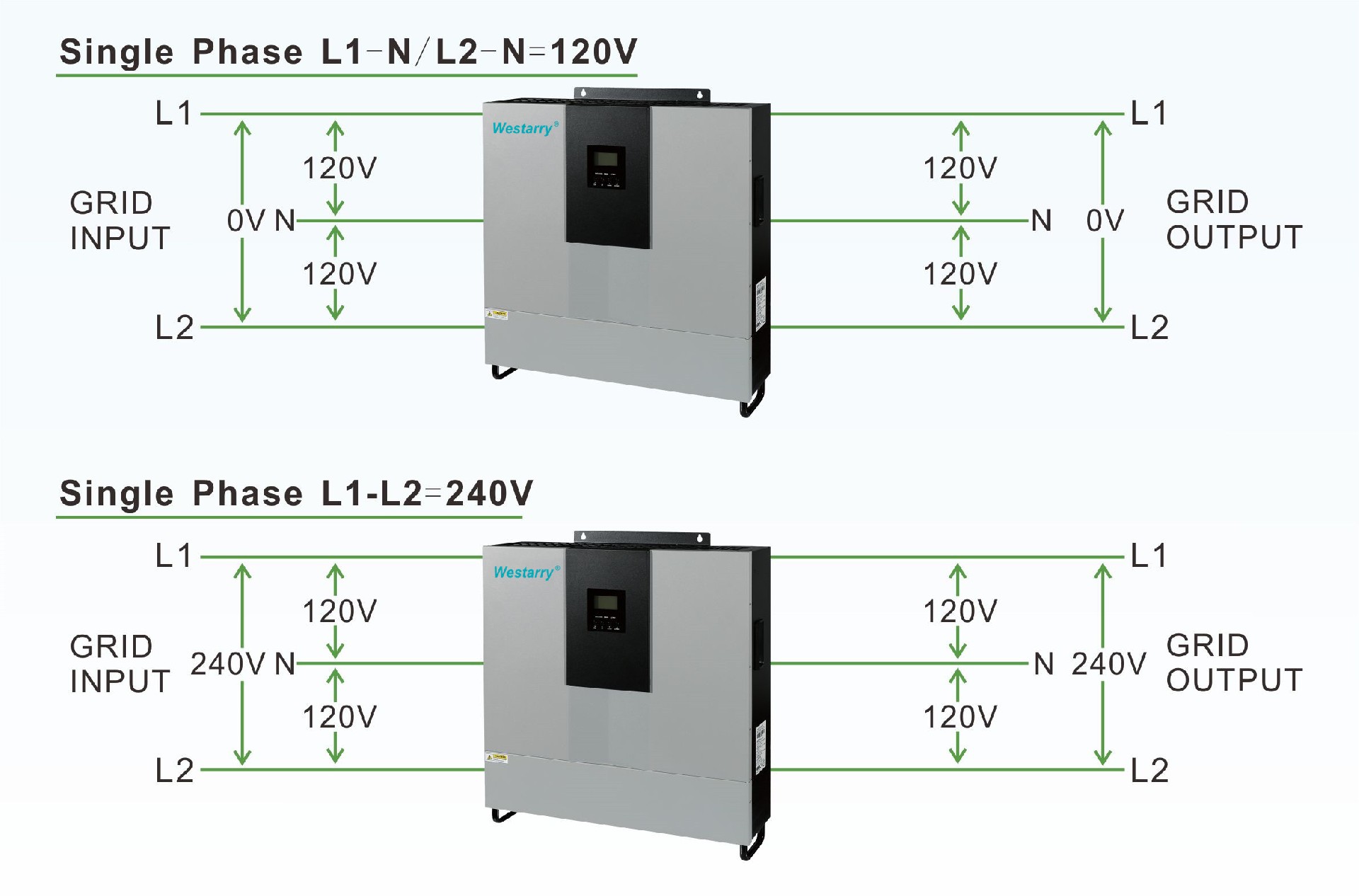

• Versatile AC output modes:single phase 120v,split
• phase 240v,a nd 3-phase 208V
• Pure sine wave output 5KW/48VDC
• Dual MPPT Input upto 160A max charge
• Max PV input power up to 8KW(4KW*2)
• Utility charging up to 60A Max.
• Max total system charing up to 220A
• Parallel operation up to 3 units max
• Genset starter dry contact
• Programmable parameters

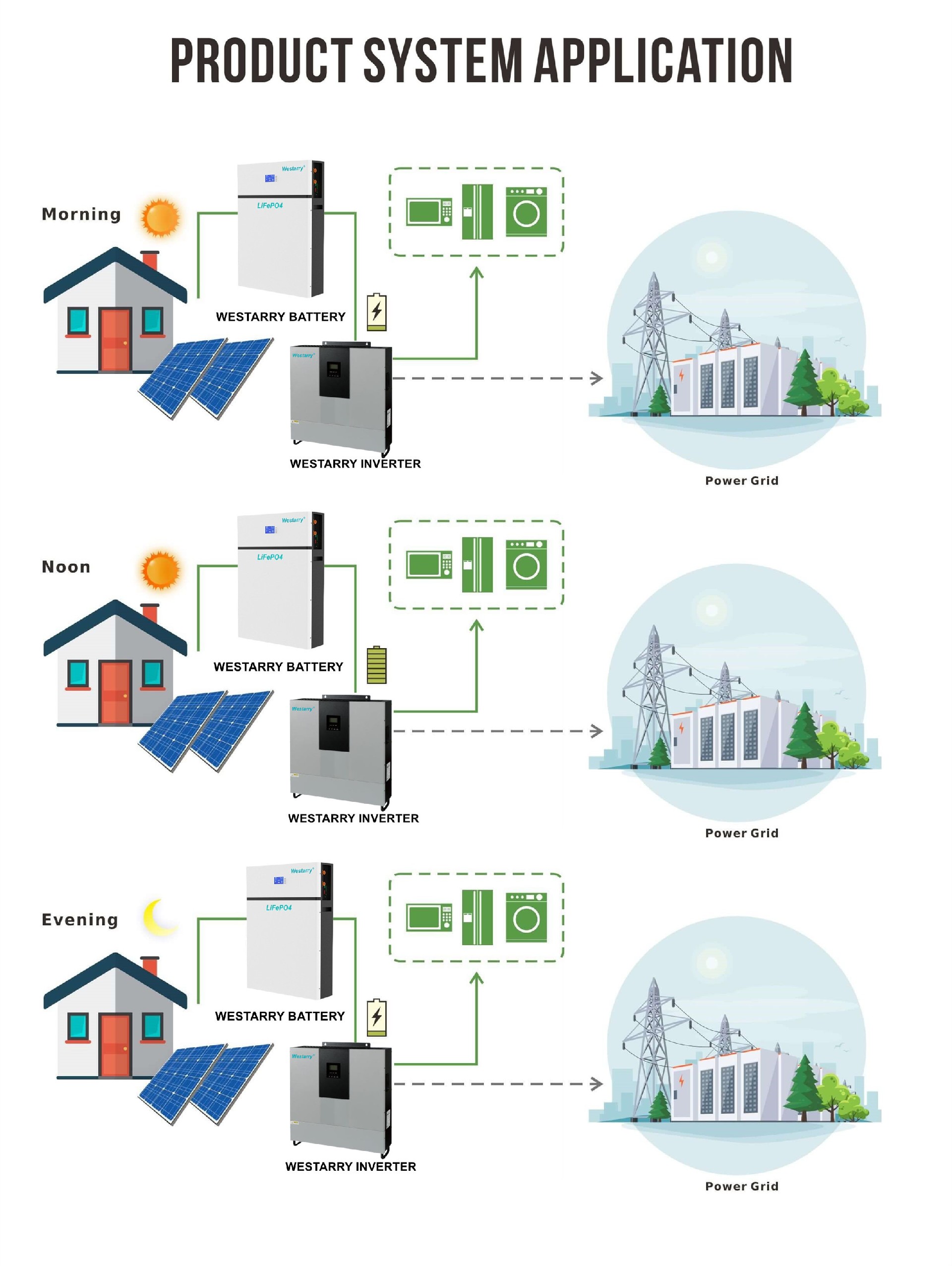

• Ideal for Off-Grid or Grid-backup application
• Easy to install
• FREE monitoring software

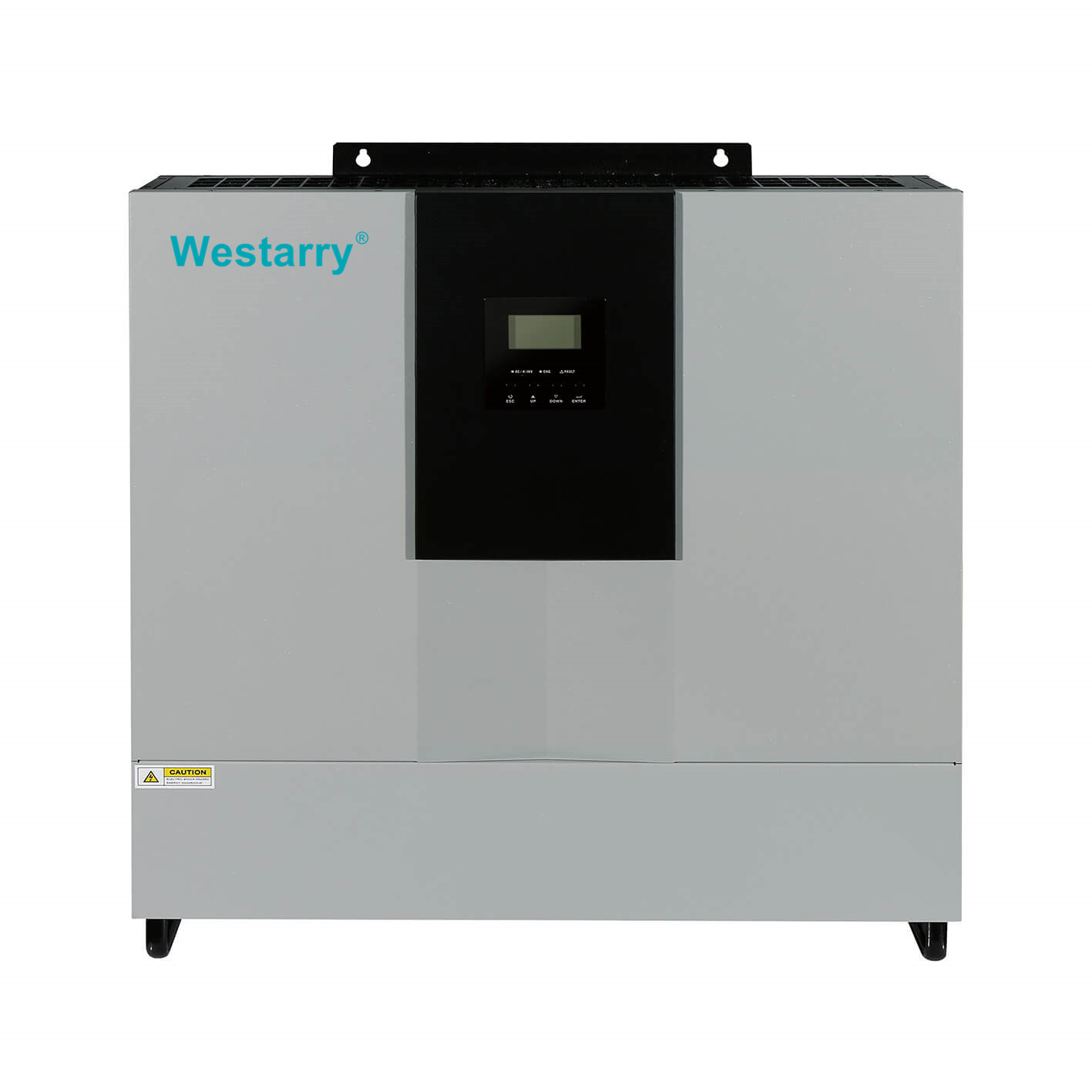

• LCD Display + LCD indicators
• USB.RS232 communication interface.
Tags：
Technical Specifications:
MODEL | WT 5032US |
Continuous Output | 5000VA/5000W |
System DC Volt | 48VDC |
AC Input Voltage | 110/120VAC (Phase-Neutral) |
Maximum Parallel | Up to 3 units |
PV INPUT/SOLAR CHARGING | |
Max PV Input Power | 8000W(4000W each input) |
Max PV input Volt | 145V(open circuit Voc) |
MPPT Range | 60-110VDC |
Number of PV Input | 2 |
Max Charging Current | 160A (80Ax2) |
OUTPUT MODE | |
Output Waveform | Pure Sine Wave |
AC Output Mode | 120V L-N/240V L1-L2 /208V L1-L2 3-Phase |
Frequency | 50 / 60 Hz,auto-sensing |
Max Bypass Current | 40A |
Max Efficiency | >90% |
Max Utility Charging | 60A |
Max Utility + Solar Charging | 220A |
Max Bulk/Float Charge | 58.4V |
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS | |

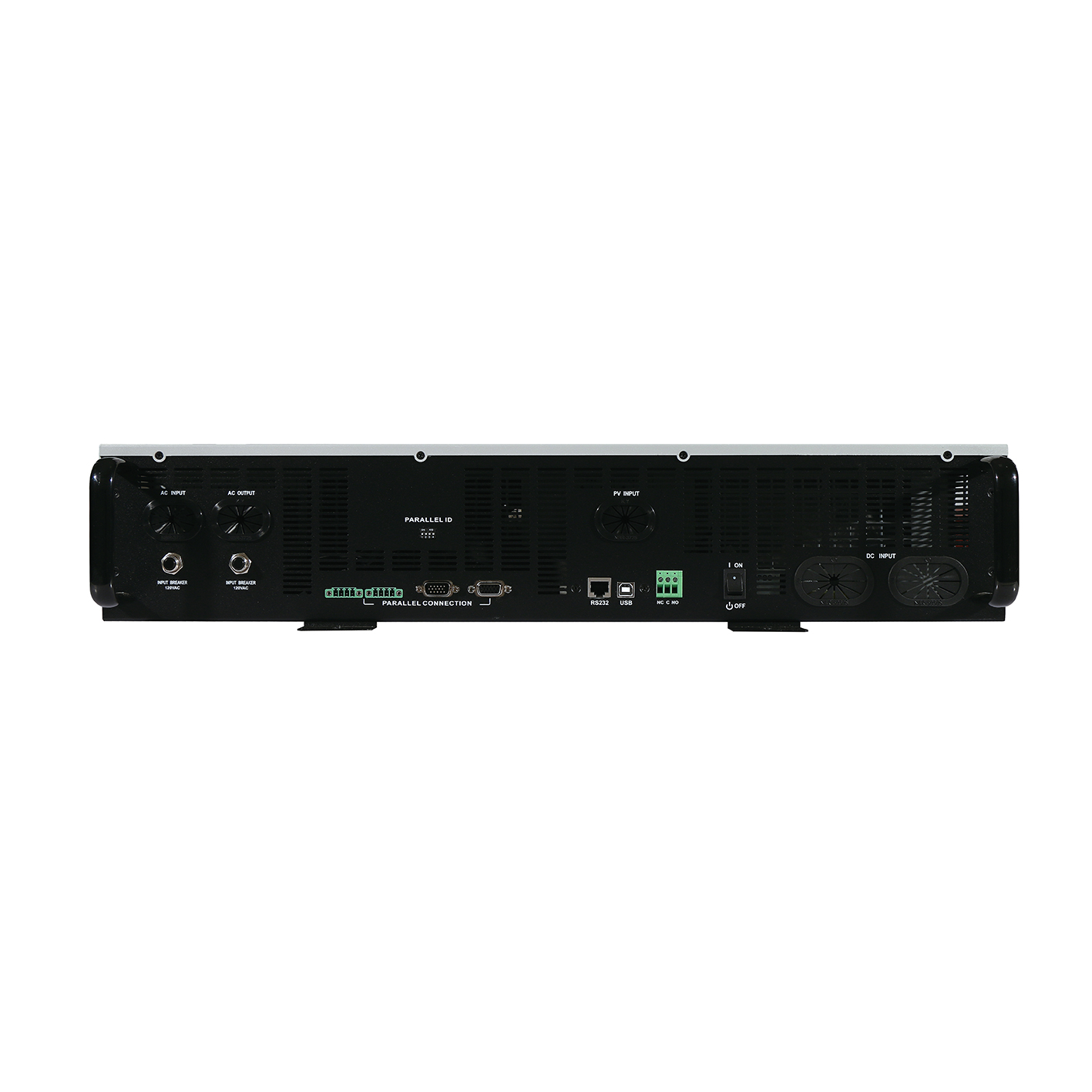

Communication Port | USB / RS232/Dry Contact |
Operating Temp | o-5or |
Dimension,D x Wx H(mm) | 623*610*130mm |
Net Weight | 30KG |
