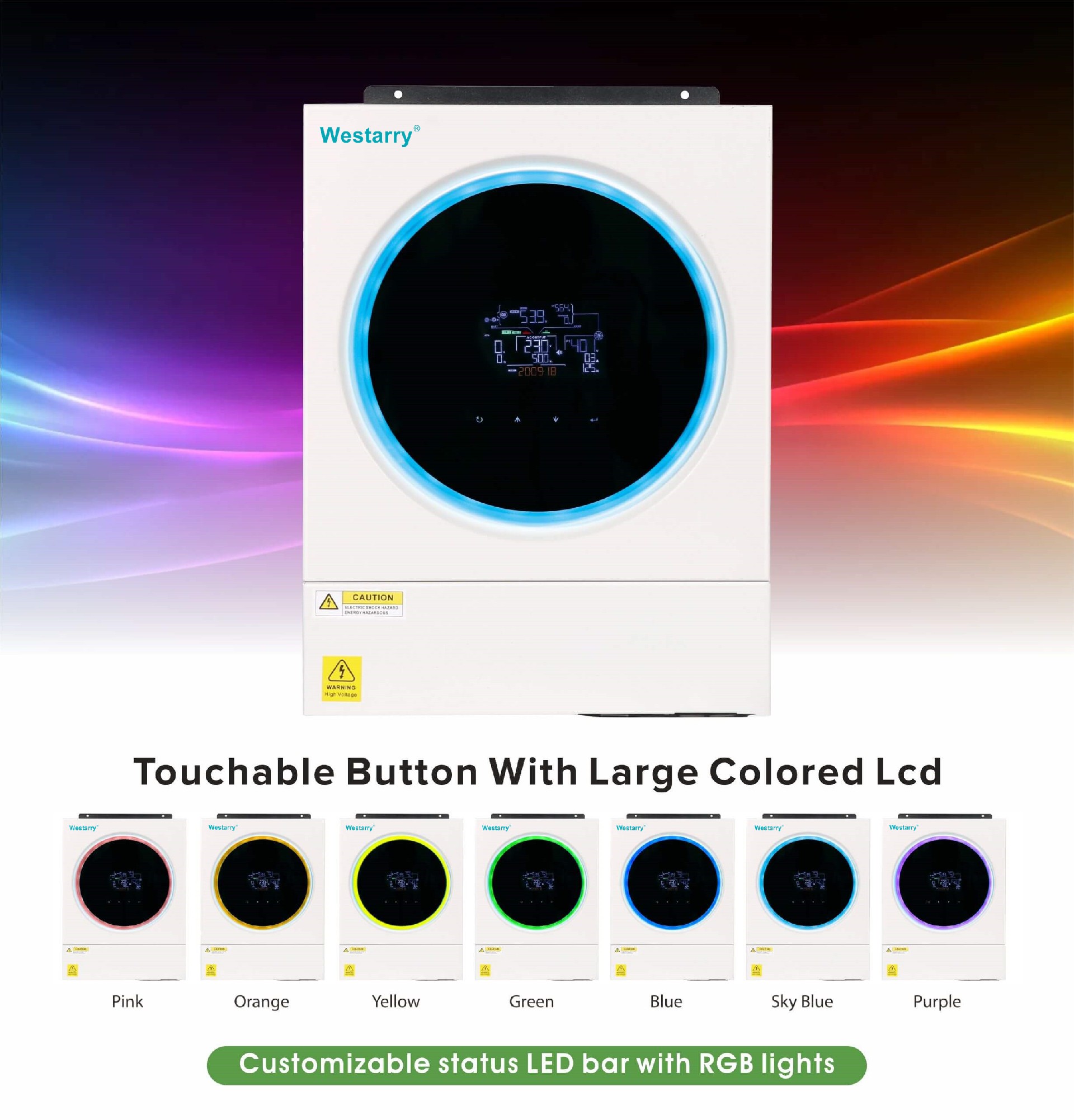

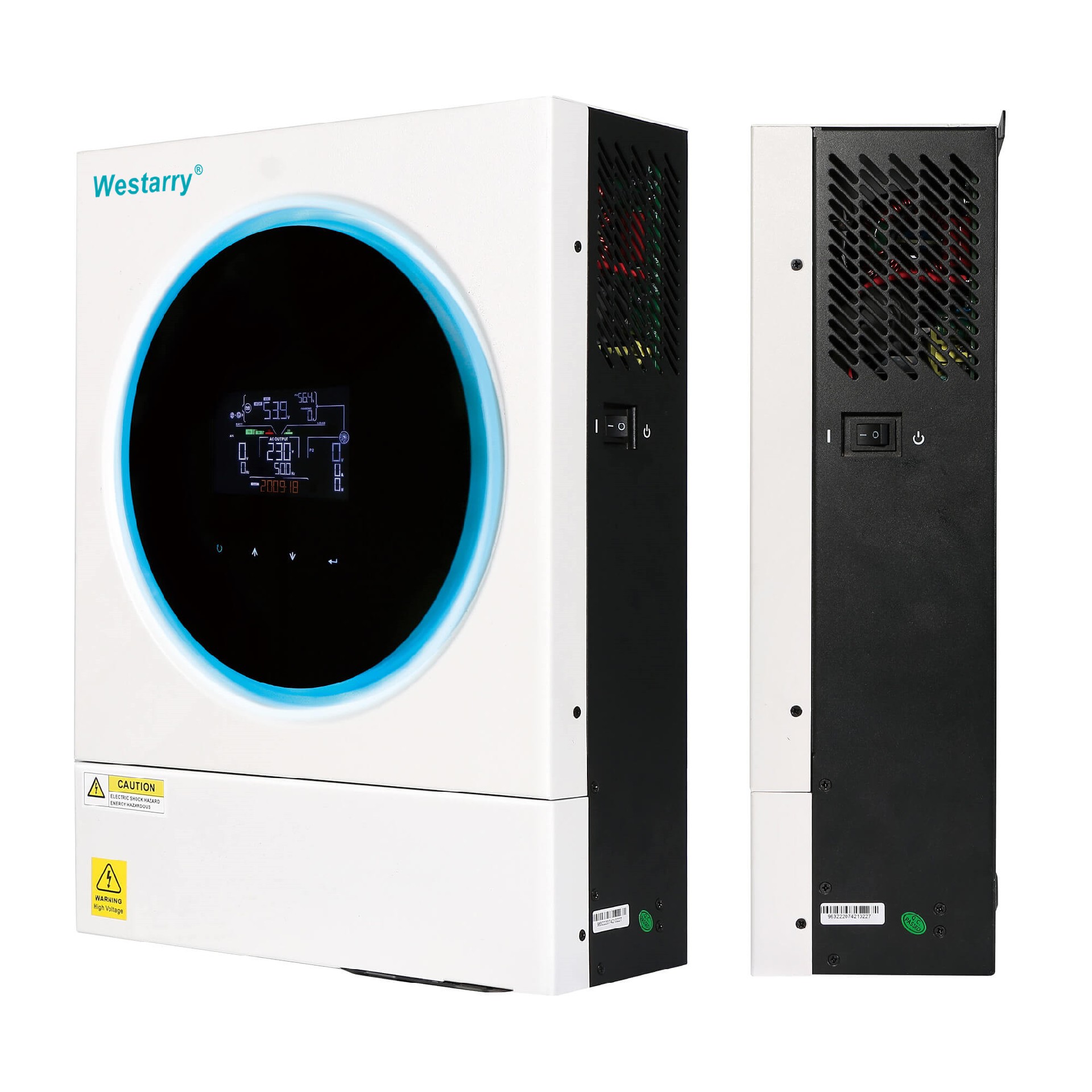

●Customizable status LED ring with RGB lights
●Touchable button with 4.3"colored LCD
●Built-in Wifi for mobile monitoring (App is available)
●Supports USB On-the Go function
●Data log events stored in the inverter
●Reserved communication port (RS485, CAN-BUS or RS232) for BMS
●Battery independent design
●Battery equalization extends lifecycle
●User-friendly LCD operation
●Enhanced charging power
●Built-in anti-dust kit
Tags：
MODEL | VM IV 3600-24 | VM IV 5600-48 |
Rated Power | 3600VA/3600W | 5600VA/5600W |
INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
Surge Power | 7200VA | 11200VA |
Efficiency (Peak) | 90% ~ 93% | |
Transfer Time | 15 ms (For Personal Computers); 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY | ||
Battery Voltage | 24 VDC | 48 VDC |
Floating Charge Voltage | 27 VDC | 54 VDC |
Overcharge Protection | 33 VDC | 63 VDC |
SOLAR CHARGER & AC CHARGER | ||
Solar Charger Type | MPPT | MPPT |
Maximum PV Array Power | 4000 W | 6000 W |
MPPT Range @ Operating Voltage | 120-450 VDC | |
Maximum PV Array Open Circuit Voltage | 500 VDC | |
Maxmum Solar Charge Current | 120 A | 120A |
Maximum AC Charge Current | 100A | 100A |
Maximum Charge Current | 120 A | 120A |
PHYSICAL | ||
Dimension, D x W x H (mm) | 115x300x400 | |
Net Weight (kgs) | 9.0 | 10.0 |

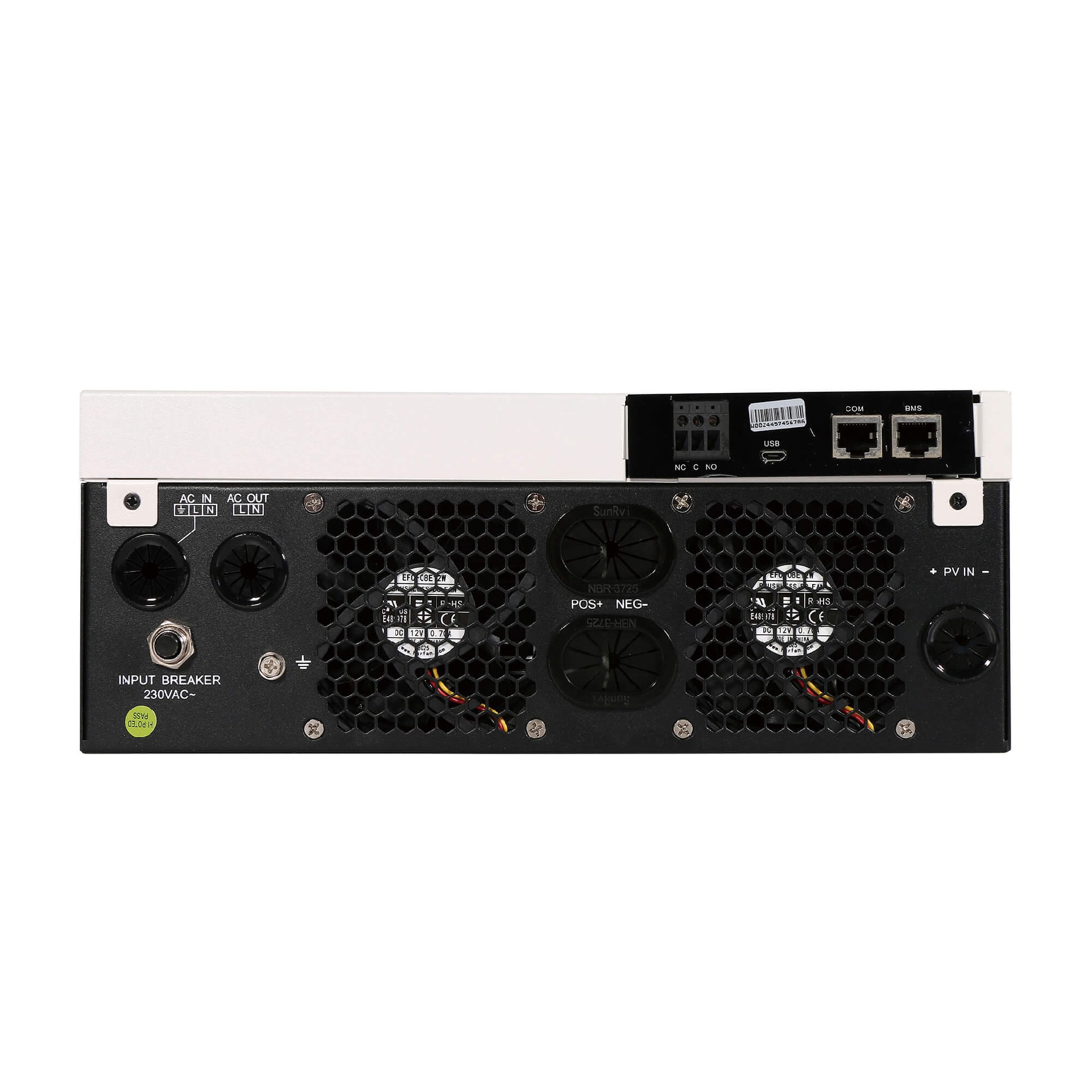

Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | -10℃ to 50℃ | |
Storage Temperature | -15℃ to 60℃ | |
