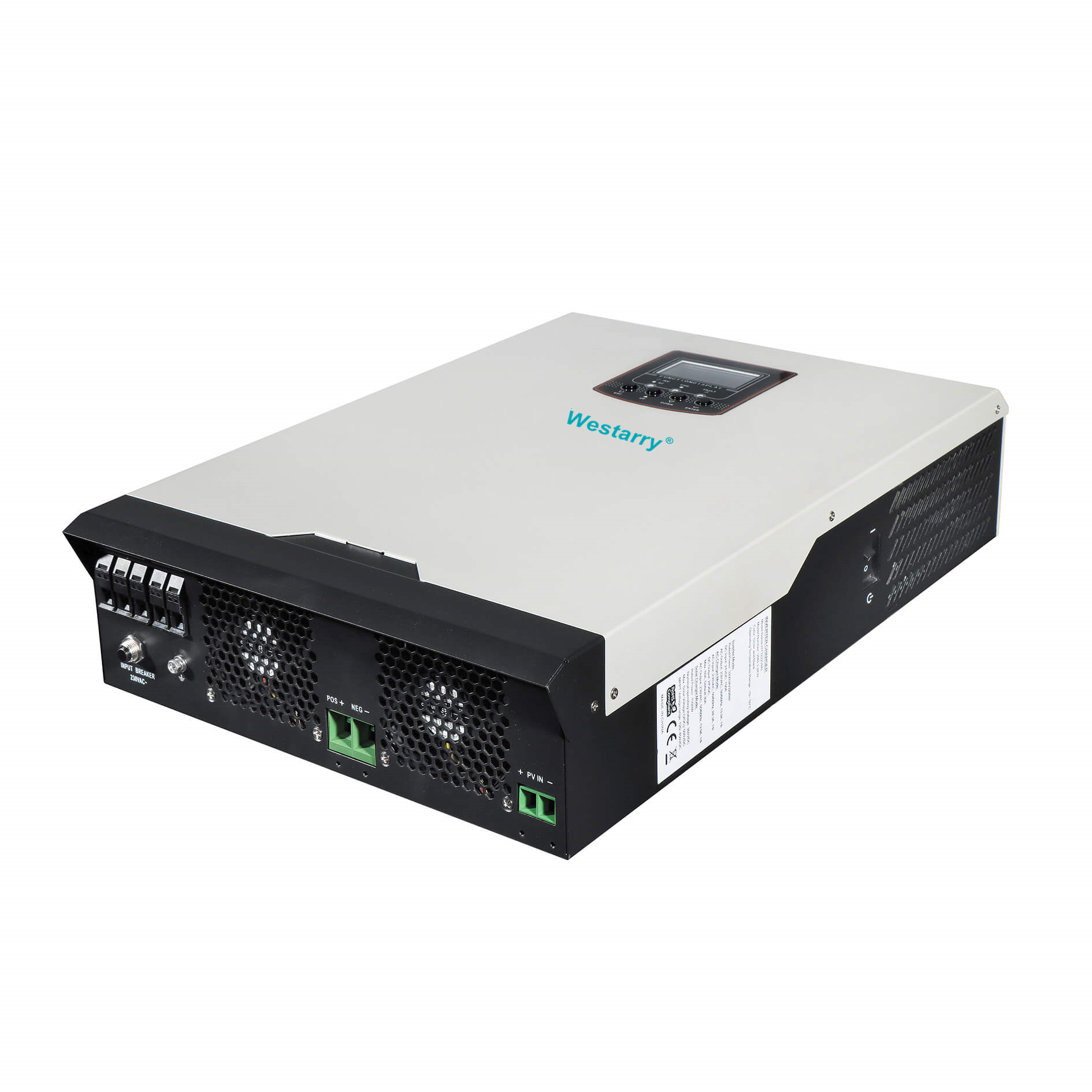

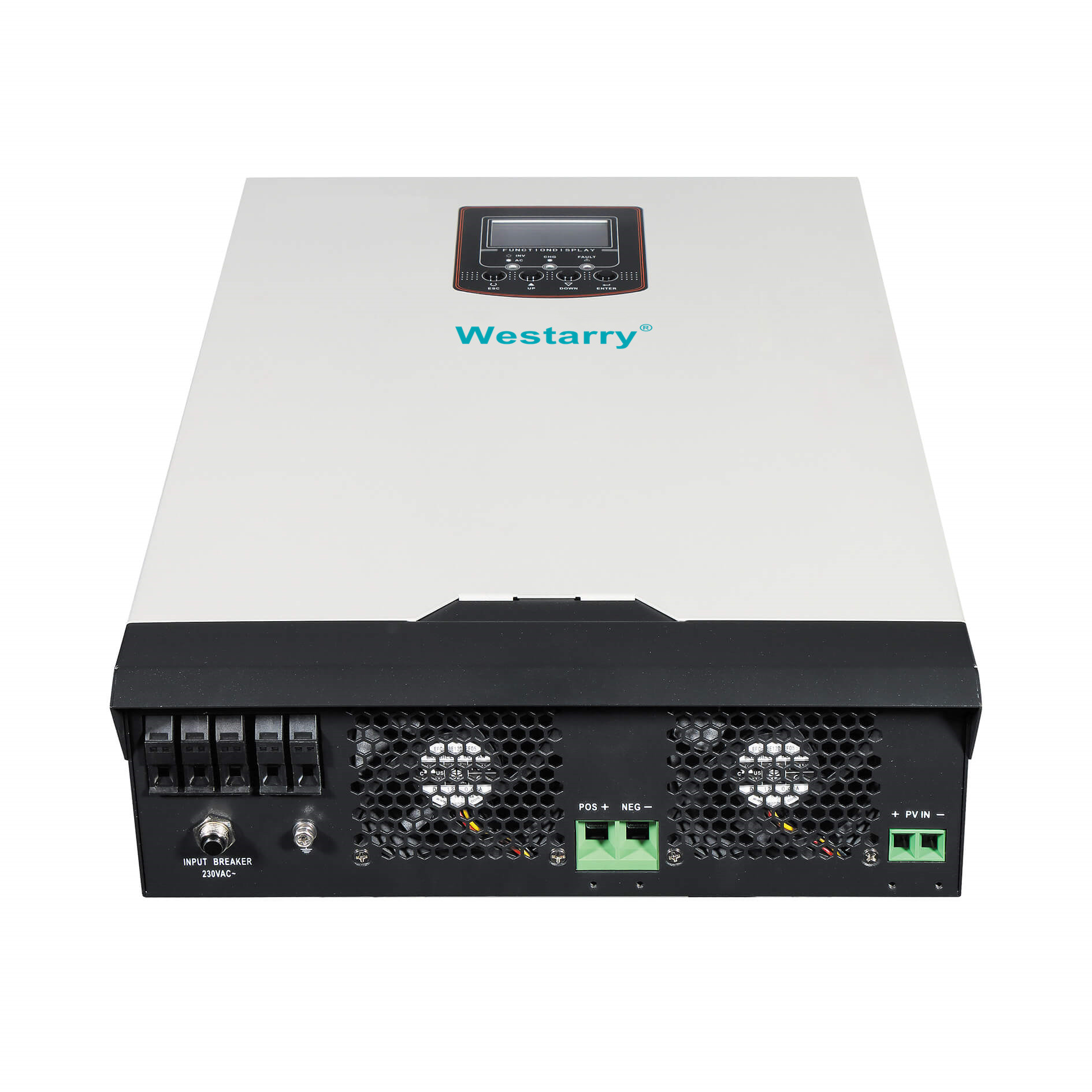

This is a multi functional inverter/charger, combining functions of
inverter,solar charger and battery charger to offer uninterruptible power
support in portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery
charging current, AC/solar charger priority, and acceptable input voltage
based on different applications.
• High efficiency pure sine wave inverter(PF=1 );Wide PV input range
(120V de -500V de) 80A MPPT SCC;lntelligent 3 stage 60A AC
battery charger.
• Surges to 2X continuous power for 5 seconds for motor loads.

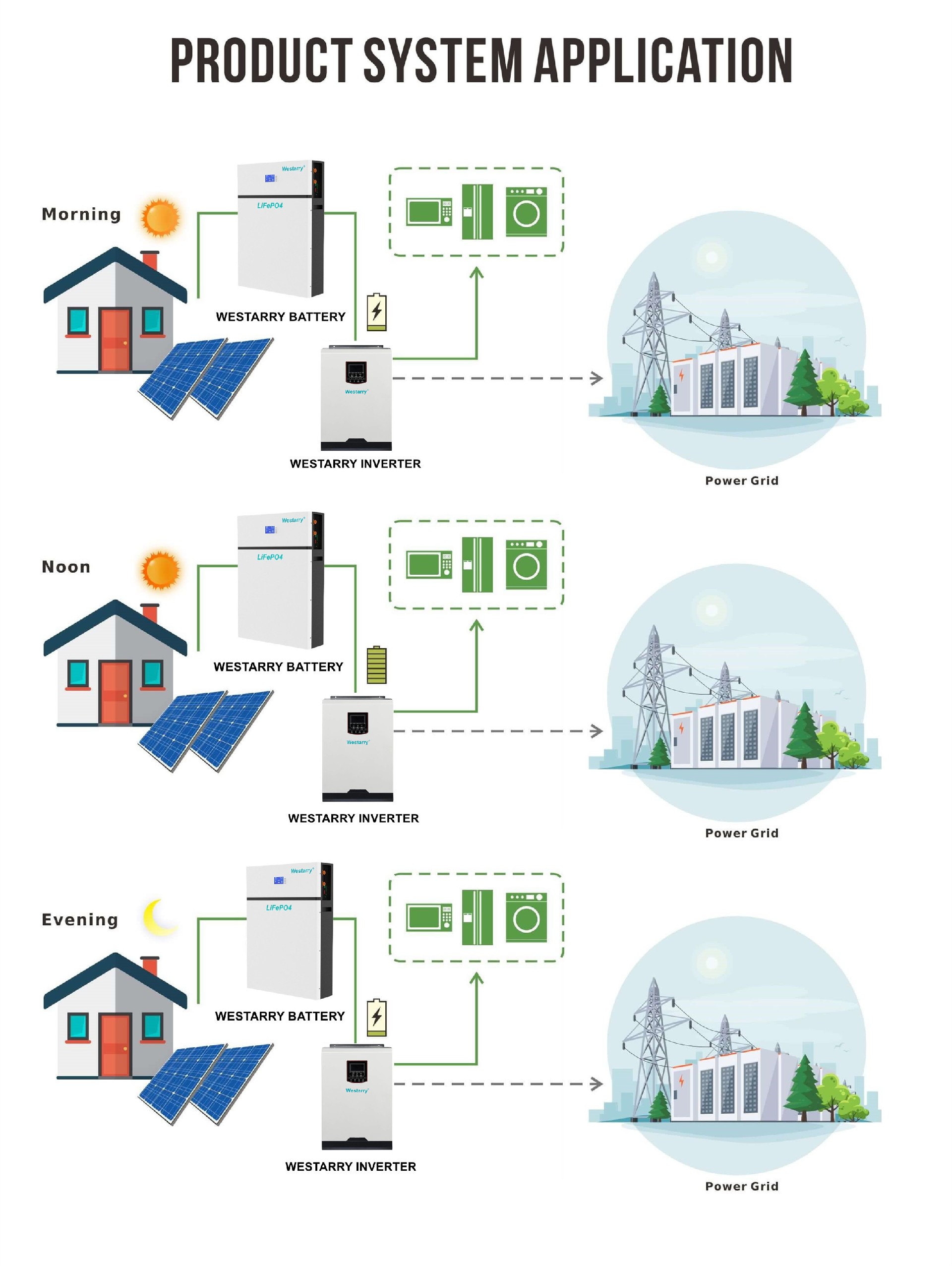

• Intelligent functionality enables utility and solar input prioritization.
• Wide ulility input range (90V ac ~280Vac) for unreliable grid even in
the most challenging environments.
• Field serviceable with replacement boards and spare parts.

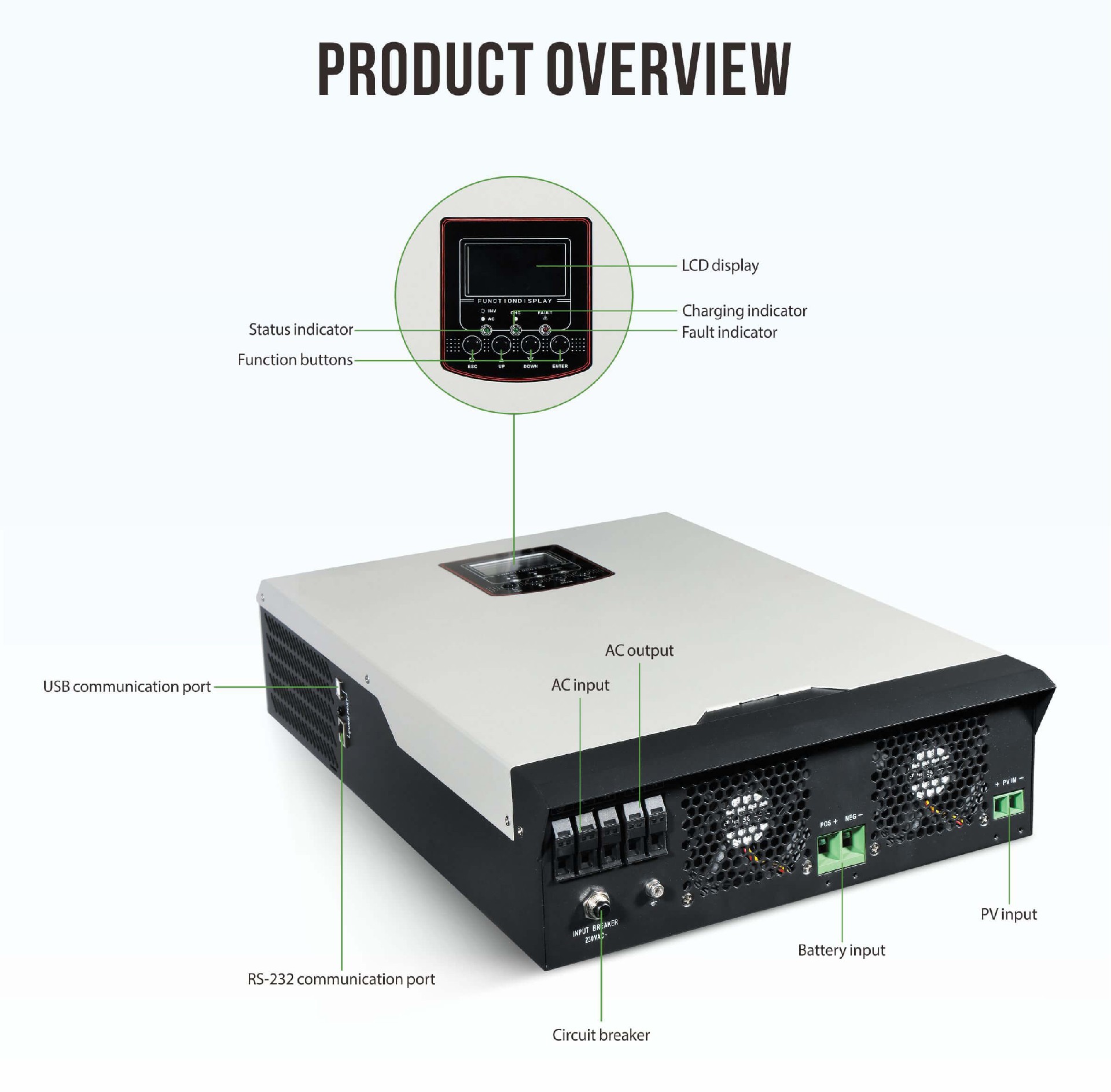

• Monitor, troubleshoot, or communication with USB/RS 232.

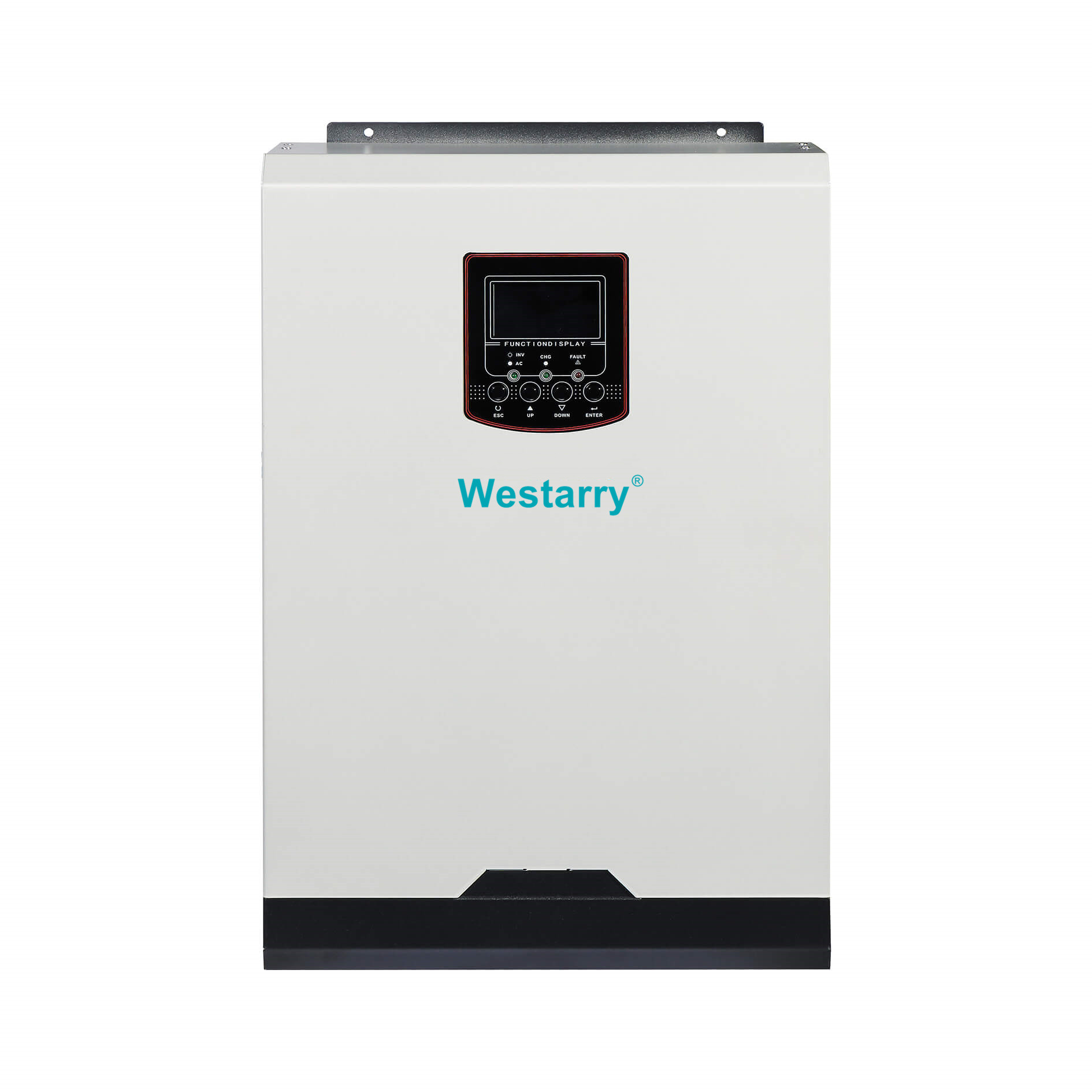

• System configures quickly into compact, wall-mounted system.
• This series inverters can work without batteries when there is the sun.
Tags：
Technical Specifications:
Model | WT5532VMII |
Rated Power | 5500VA/5500W |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers); |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
Surge Power | 11000VA |
Efficiency (Peak) | 90%~93% |
Transfer Time | 10 ms (For Personal Computers); |
Waveform | Pure sine wave |
BATTERY | |
Battery Voltage | 48VDC |
Floating Charge Voltage | 54VDC |
Overcharge Protection | 63VDC |
SOLAR CHARGER & AC CHARGER | |
Max. PV Array Open Circuit Voltage | 500VDC |
Max. PV Array Power | 120-450VDC |
MPP Range ©operating Voltage | 5000W |
Max. Solar Charge Current | 100A |
Max. AC Charge Current | 60A |
Max. Charge Current | 100A |
PHYSICAL | |
Dimension, D x W x H (mm) | 115x300x400 |
Net Weight (kgs) | 10 |
Communication Interface | USB/RS232/RS485/Bluetooth/Dry-contact |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Operating Temperature | -10° C to 50° C |
Storage Temperature | -15° C to 60° C |
Approximate Back-Up Time Table:
Model | Load (VA) | Backup Time @48Vdc 100Ah(min) |
5.5KVA | 500 | 490 |
2500 | 72 | |
5000 | 32 |
