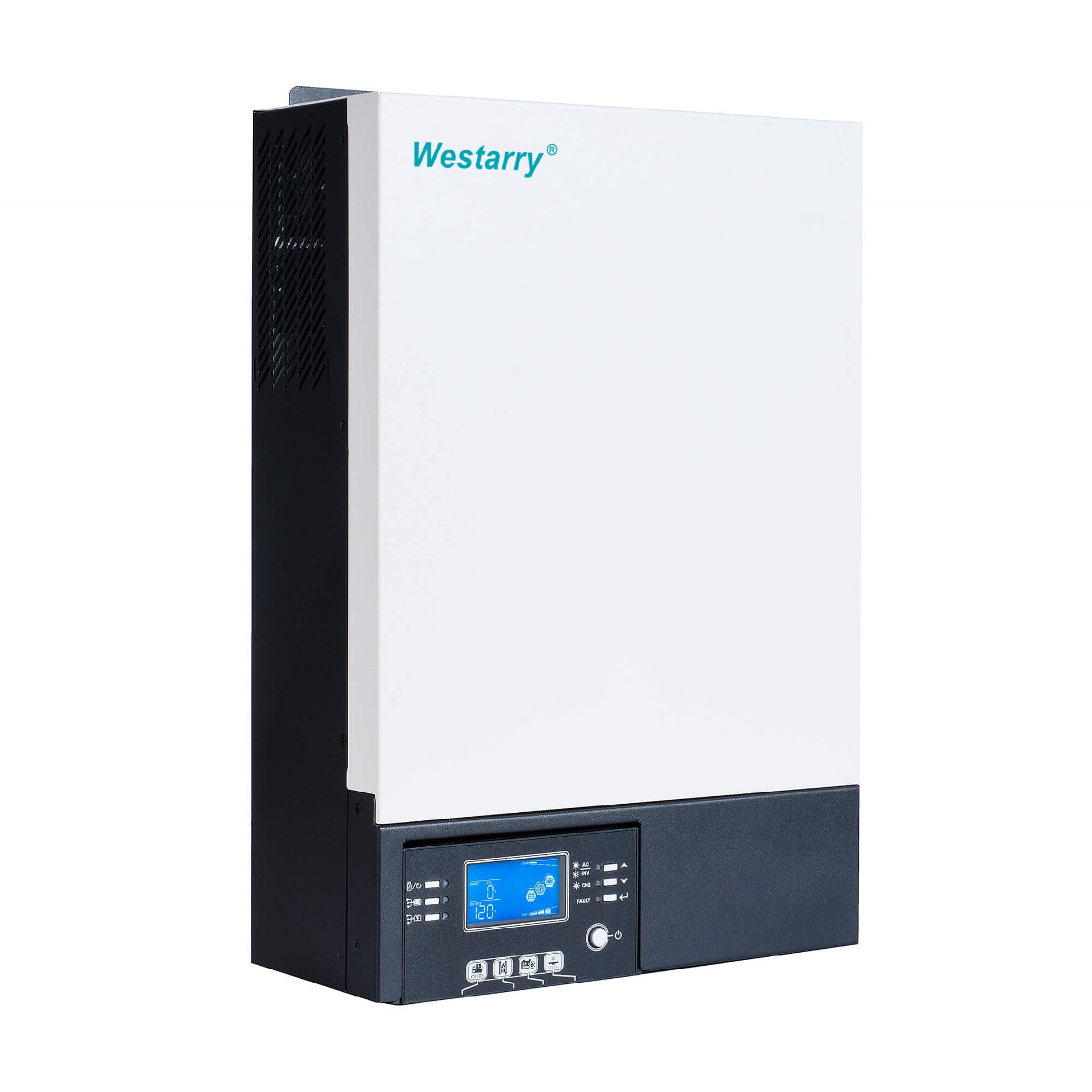

This is an upgraded multi functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible
power support in portable size. Support Bluetooth for mobile monitoring, and its detachable LCD display module offers user-configurable and
easy-accessible button operation such as battery charging current, AC/ solar charger priority, and acceptable input voltage based on different
applications.
• Support Bluetooth for mobile monitoring (Android App available).

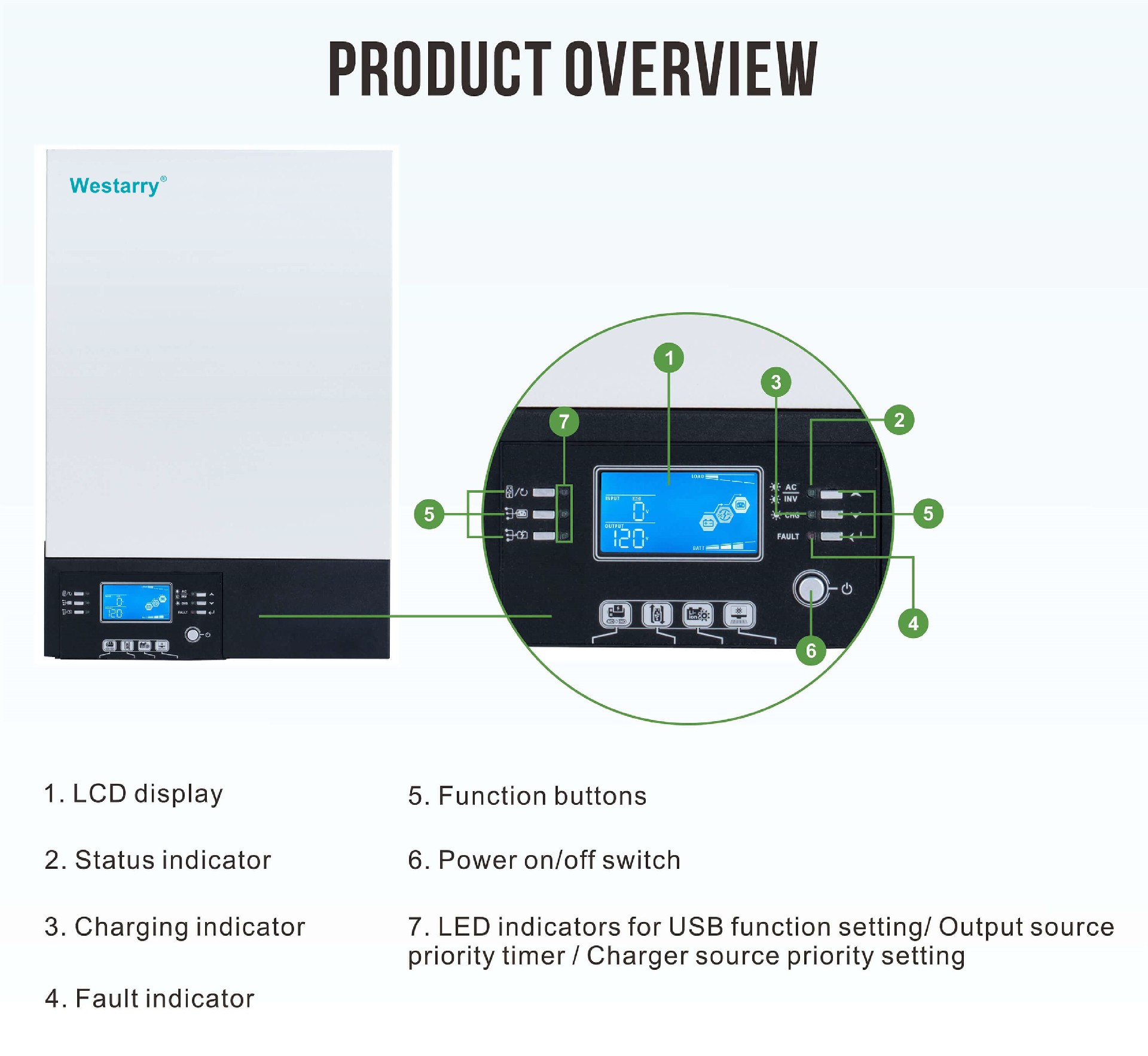

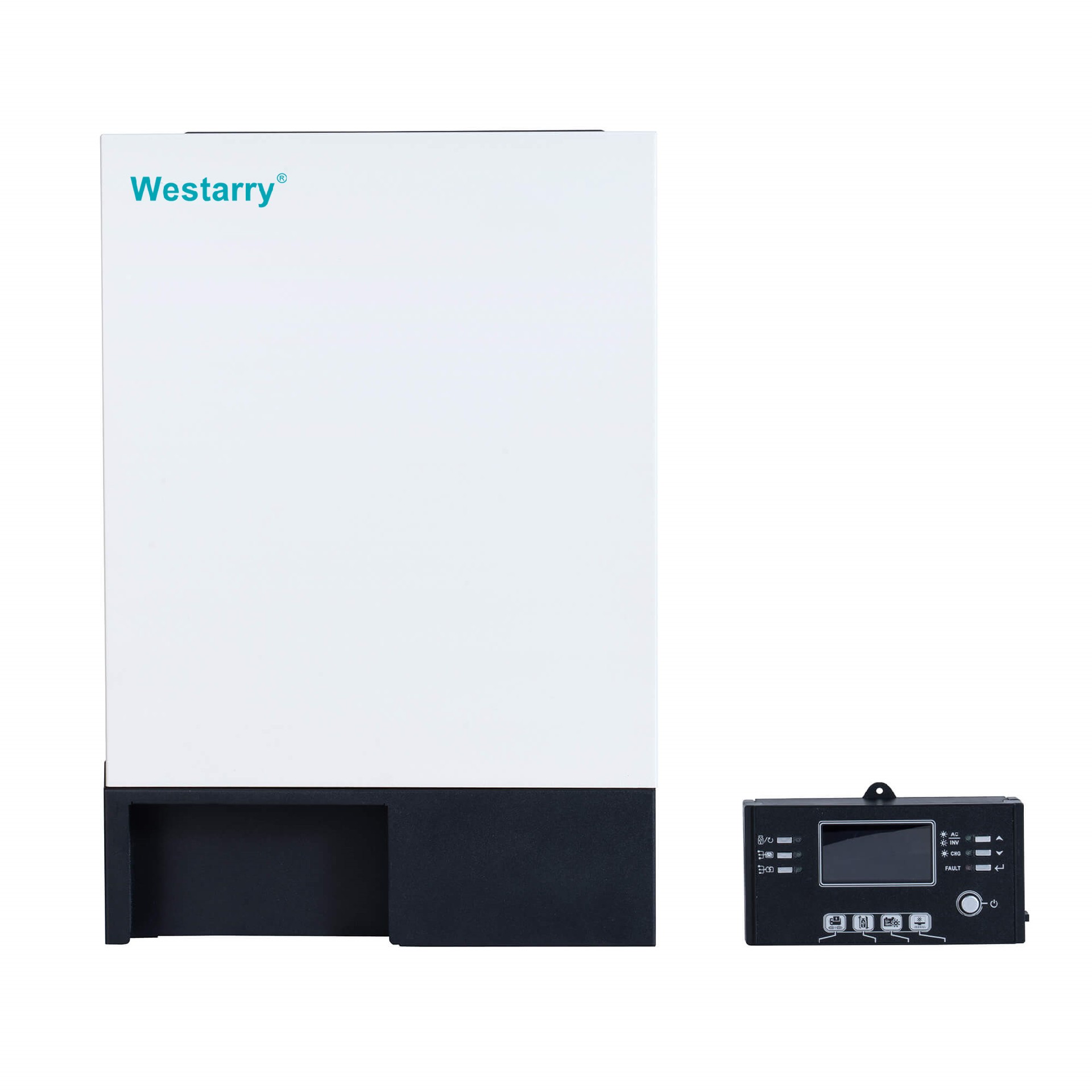

• Detachable LCD control module with multiple communications
• High efficiency pure sine wave inverter(PF=1); Wide PV input range
(120V de -500V de) 80A MPPT SCC; Intelligent 3stage 60A AC battery charger.
• Surges to 2X continuous power for 5 seconds for motor loads.
• Programmable Utility and Solar output usage timer and prioritization.
• Support operation without battery, supply power from Grid or PV ifbattery not available.
• Auto restart while AC is recovering.
• Field serviceable with replacement boards and spare parts.
Tags：
Model | WT3522VMIII |
RATED POWER | 3500VA/3500W |
INPUT | |
Voltage | 230 VAC |
Sesectabte Voltage Range | 170-280 VAC (For Personal Computers); |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Vottage Regulation (Batt. Mode) | 230 VAC + 5% |
Surge Power | 7000VA |
Efficiency (Peak) | 90%-93% |
Transfer Time | 10 ms (For Personal Computers) |
Waveform | Pure sine wave |
BATTERY | |
Batten Voltage | 24VDC |
Floating Charge Voltage | 27VDC |
Overcharge Protection | 33VDC |
SOLAR CHARGER & AC CHARGER | |
Solar charger type | MPPT |
Max. PV Array Open Circuit Voltage | 500VDC |
MPP Range @operatng Voltage | 120-450VDC |
Max. PV Array Power | 5000W |
Max. Solar Charge Current | 100A |
Max. AC Charge Current | 60A |
Max. Charge Current | 80A |
PHYSICAL | |
Dimension, DxWxH(mm) | 115x300x400 |
Net Weight (kgs | 9 |
Communication interface | USB/RS232/RS485/Bluetooth/Dry-contact |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Operating Temperature | -10℃ to 50℃ |
Storage TempGrature | -15℃ to 60℃ |
Approximate Back-Up Time Table:
Model | Load (VA) | Backup Time @24Vdc 100Ah(min) |
3KVA | 300 | 359 |
1500 | 54 | |
3000 | 22 |
