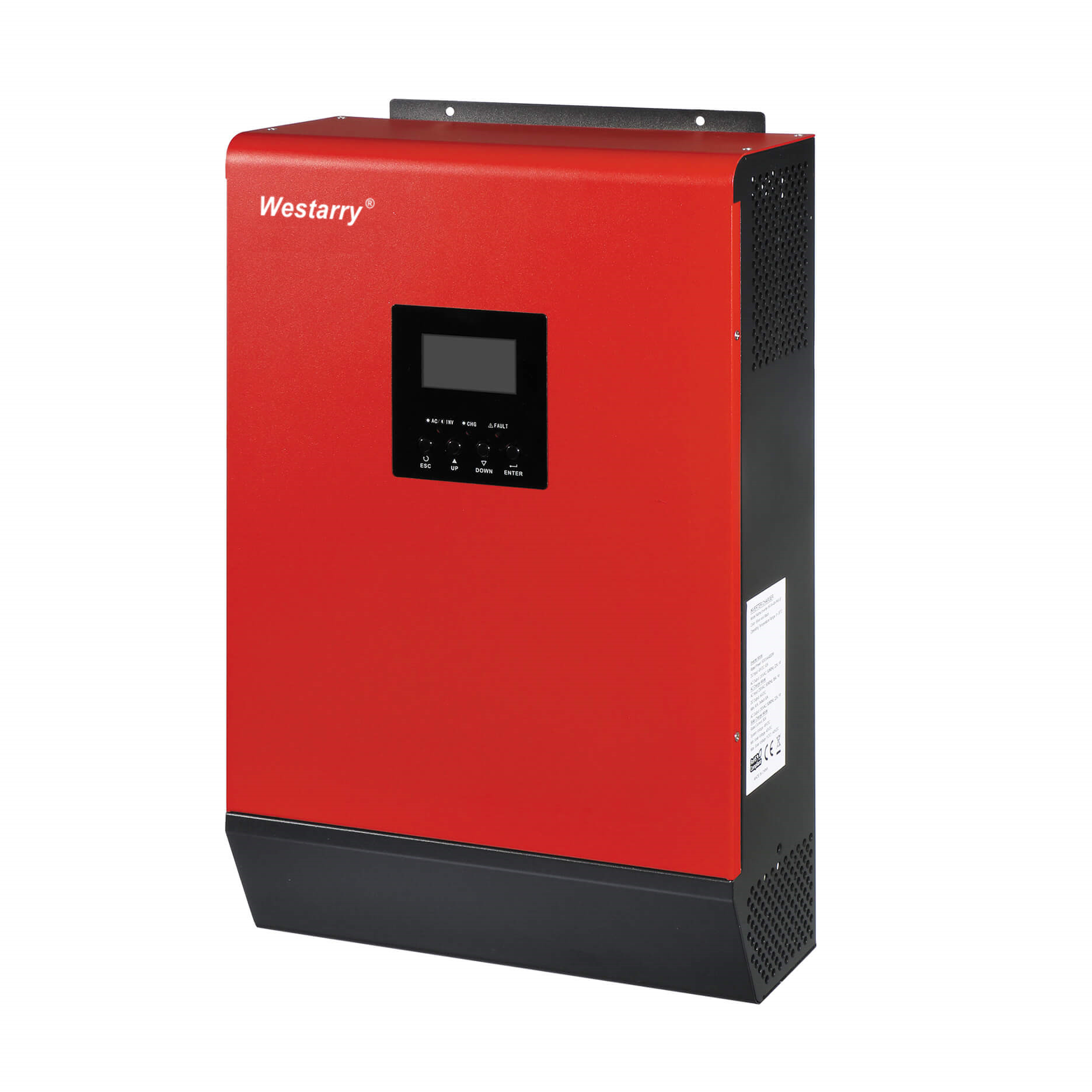

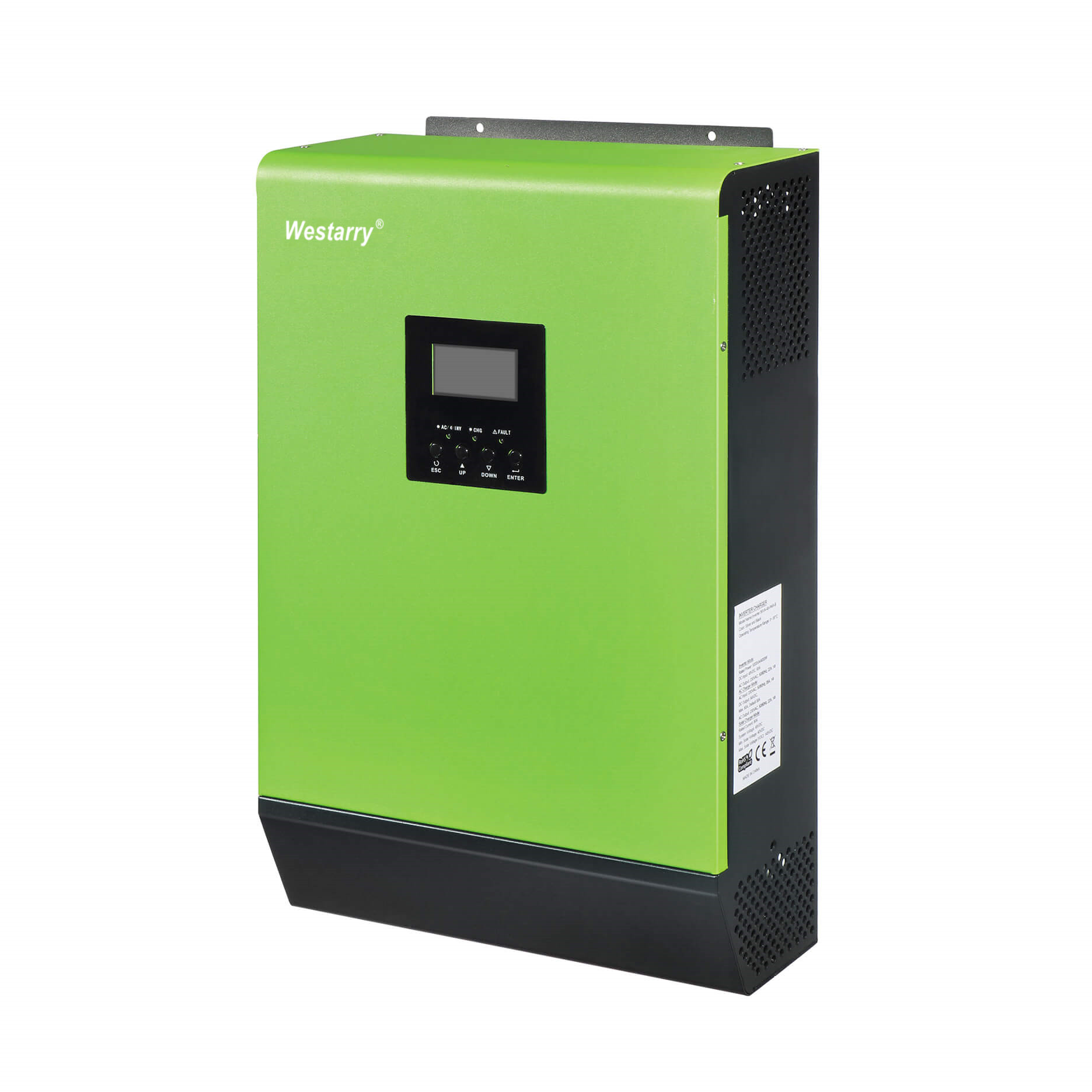

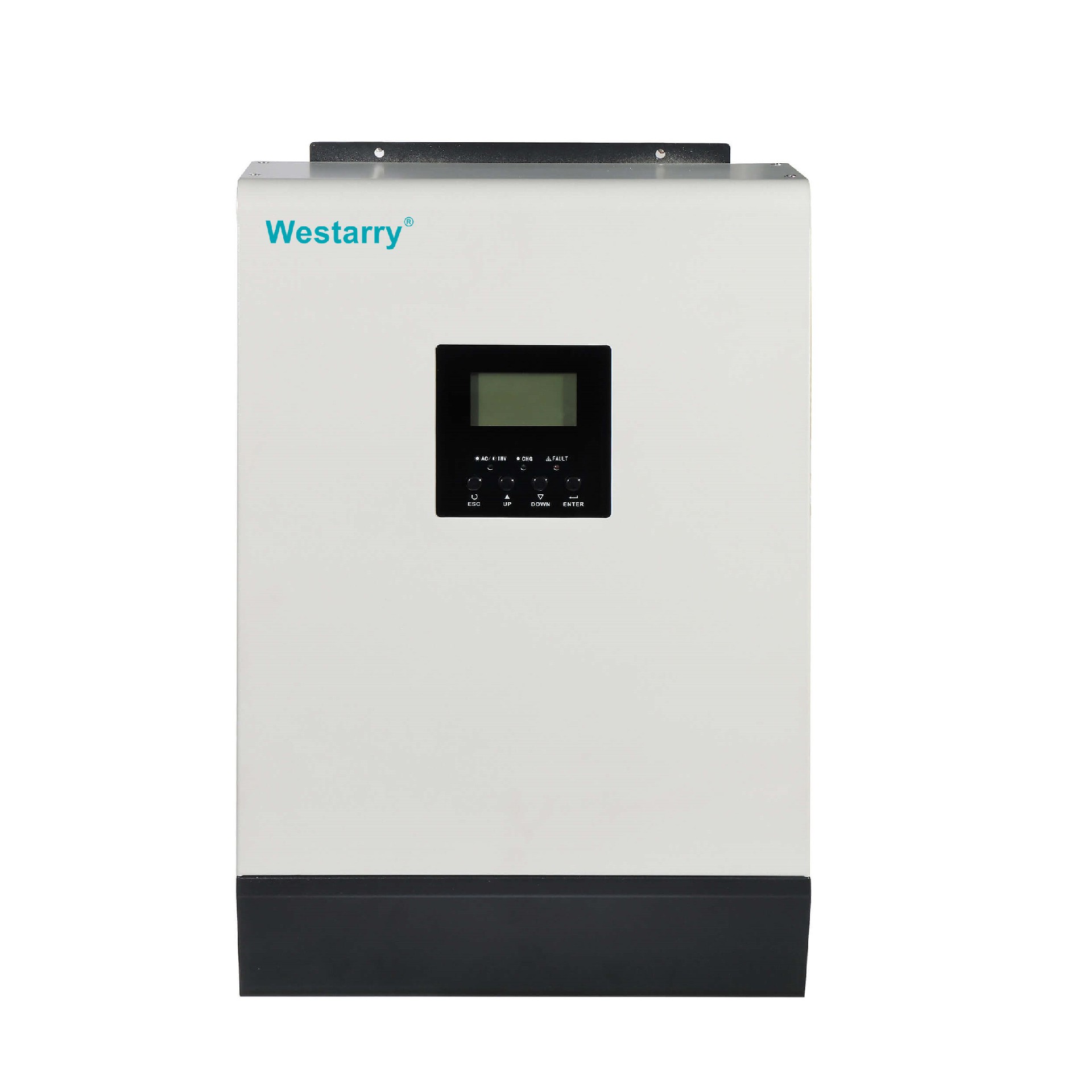

This is a multi functional inverter/charger, combining functions of
inverter,solar charger and battery charger to offer uninterruptible power

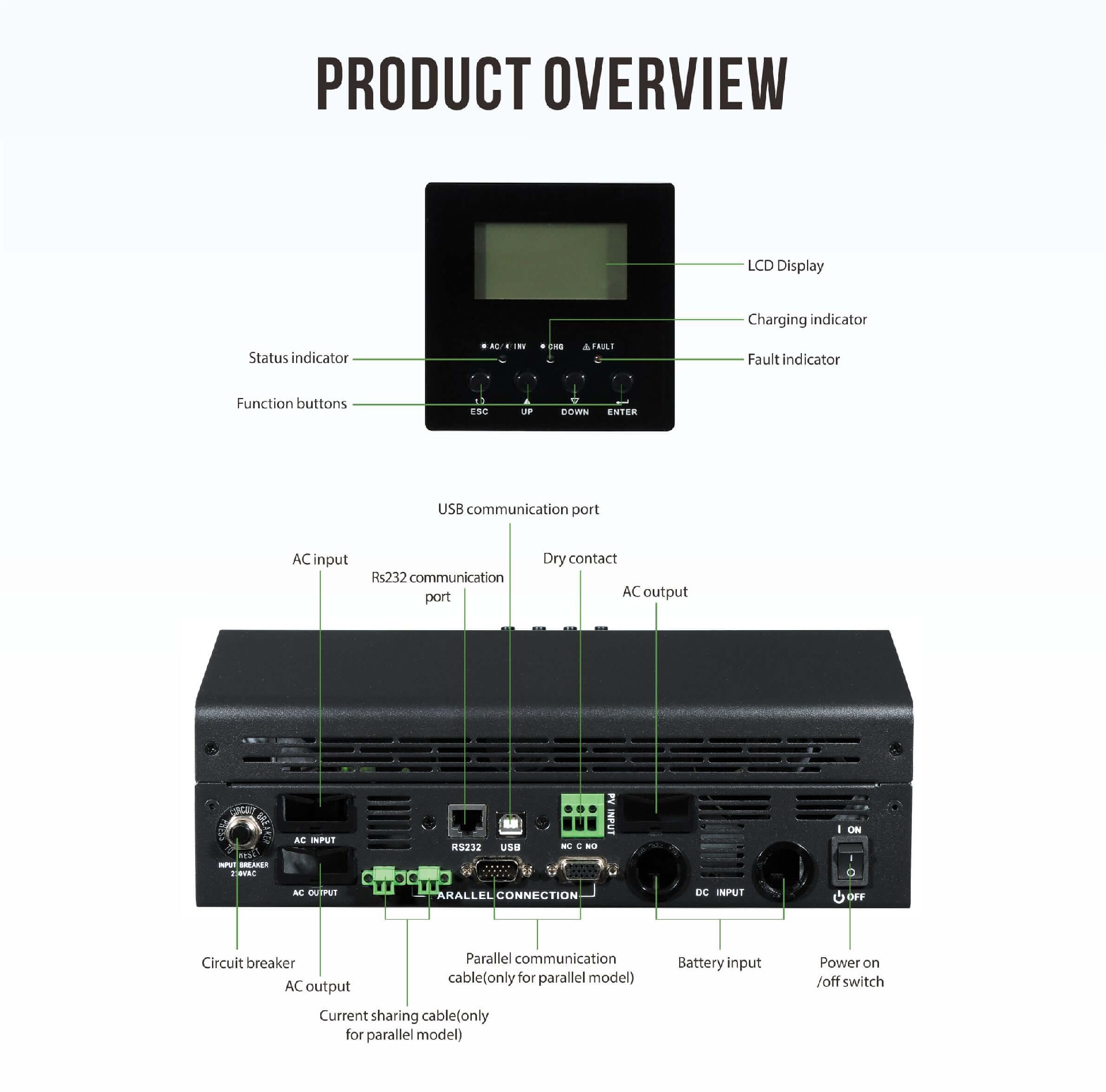

support in portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery
charging current, AC/solar charger priority, and acceptable input voltage
based on different applications.
• High efficiency pure sine wave inverter(PF=1 );Wide PV input range
(120Vdc - 450Vdc) 80A MPPT SCC;lntelligent 3 stage 80A AC
battery charger.
• Surges to 2X continuous power for 5 seconds for motor loads.

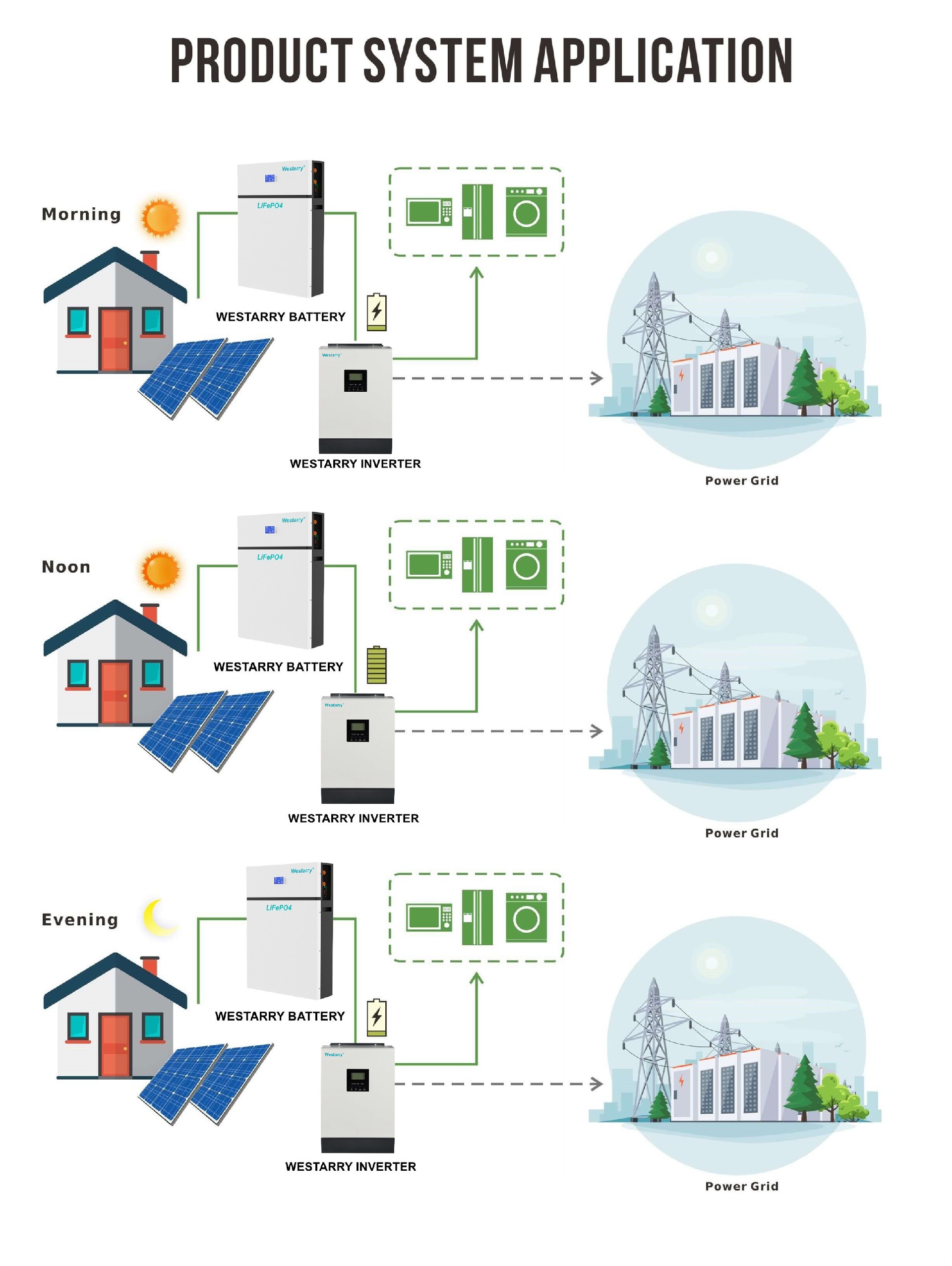

• Intelligent functionality enables utility and solar input prioritization.
• Wide ulility input range (90V ac ~280Vac) for unreliable grid even in
the most challenging environments.
• Field serviceable with replacement boards and spare parts.

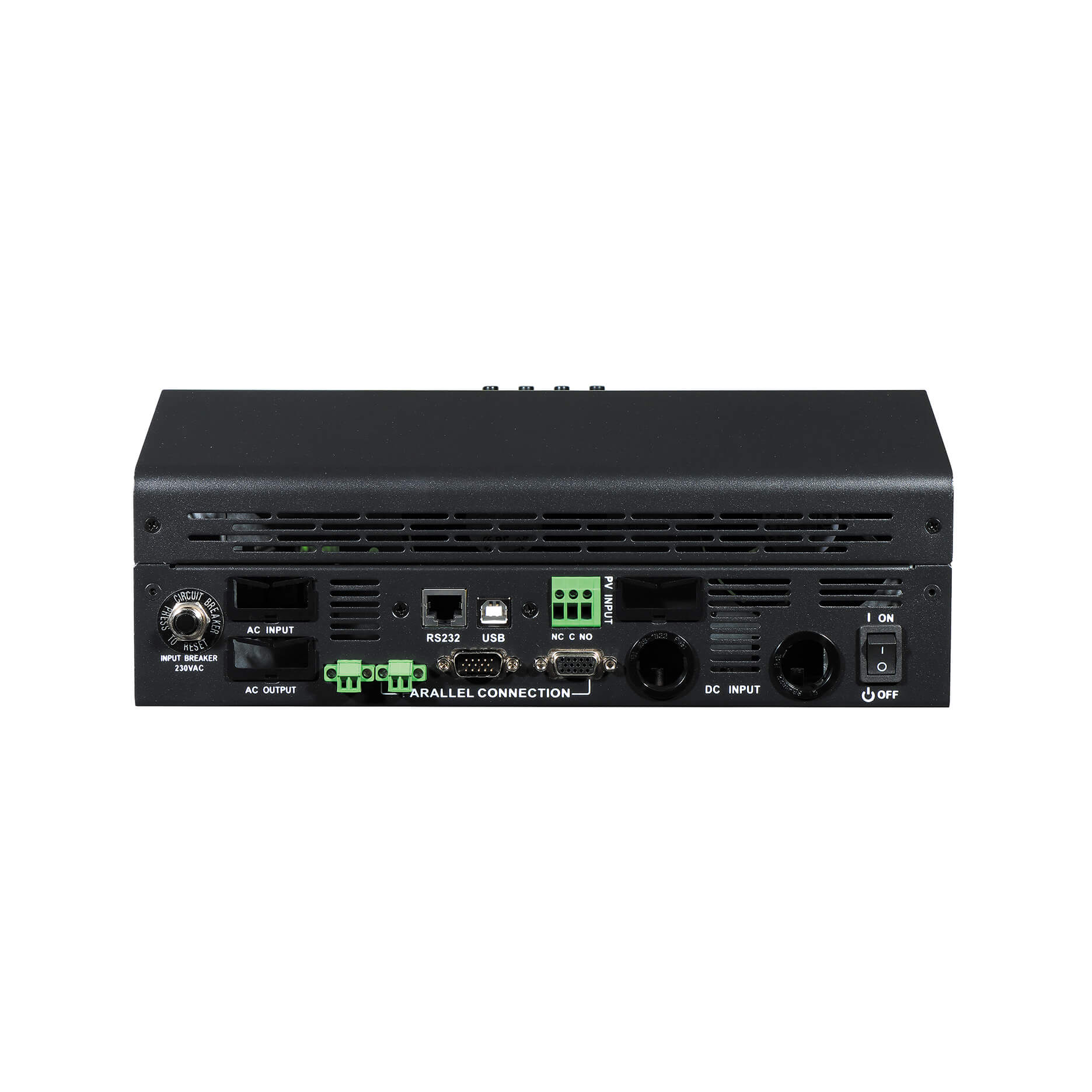

• Monitor, troubleshoot, or communication with USB/RS 232.
• System configures quickly into compact, wall-mounted system.
• This series inverters can work without batteries when there is the sun.
• Parallel operation with up to 9 units.
Tags：
Technical Specifications:
Model | WTXII-5K |
Rated Power | 5000VA/5000W |
Parallel Capability | Yes,9 units |
INPUT | |
Voltage | 230VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
Frequemcy | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt.Mode) | 230VAC ± 5% |
Surge Power | 10000VA |
Efficiency (Peak) | 90% |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
Waveform | Pure Sine Wave |
BATTERY | |
Battery Voltage | 48VDC |
Floating Charge Voltage | 54VDC |
Overcharge Protection | 66VDC |
SOLAR CHARGER & AC CHARGER | |
Maximum PV Array Power | 4500W |
MPPT Range @ Operating Voltage | 120VDC-430VDC |
Maximum PV Array Open Circuit Voltage | 450VDC |
Maximum Solar Charge Current | 80A |
Maximum AC Charge Current | 80A |
Maximum Charge Current | 80A |
PHYSICAL | |
Dimension,DxWxH (mm) | 120*295*468 |
Net Weight (kgs) | 11 |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Operating Temperature | 0℃ - 55℃ |
Storage Temperature | —15℃-60℃ |
Approximate Back-Up Time Table:
Model | Load(VA) | Backup Time @48Vdc 100Ah(min) | Backup Time @48Vdc 200Ah(min) |
5KVA | 1000 | 268 | 613 |
2000 | 111 | 271 | |
3000 | 76 | 182 | |
4000 | 50 | 112 | |
5000 | 40 | 90 |
