• Pure sine wave output
• Self-consumption and deed in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries

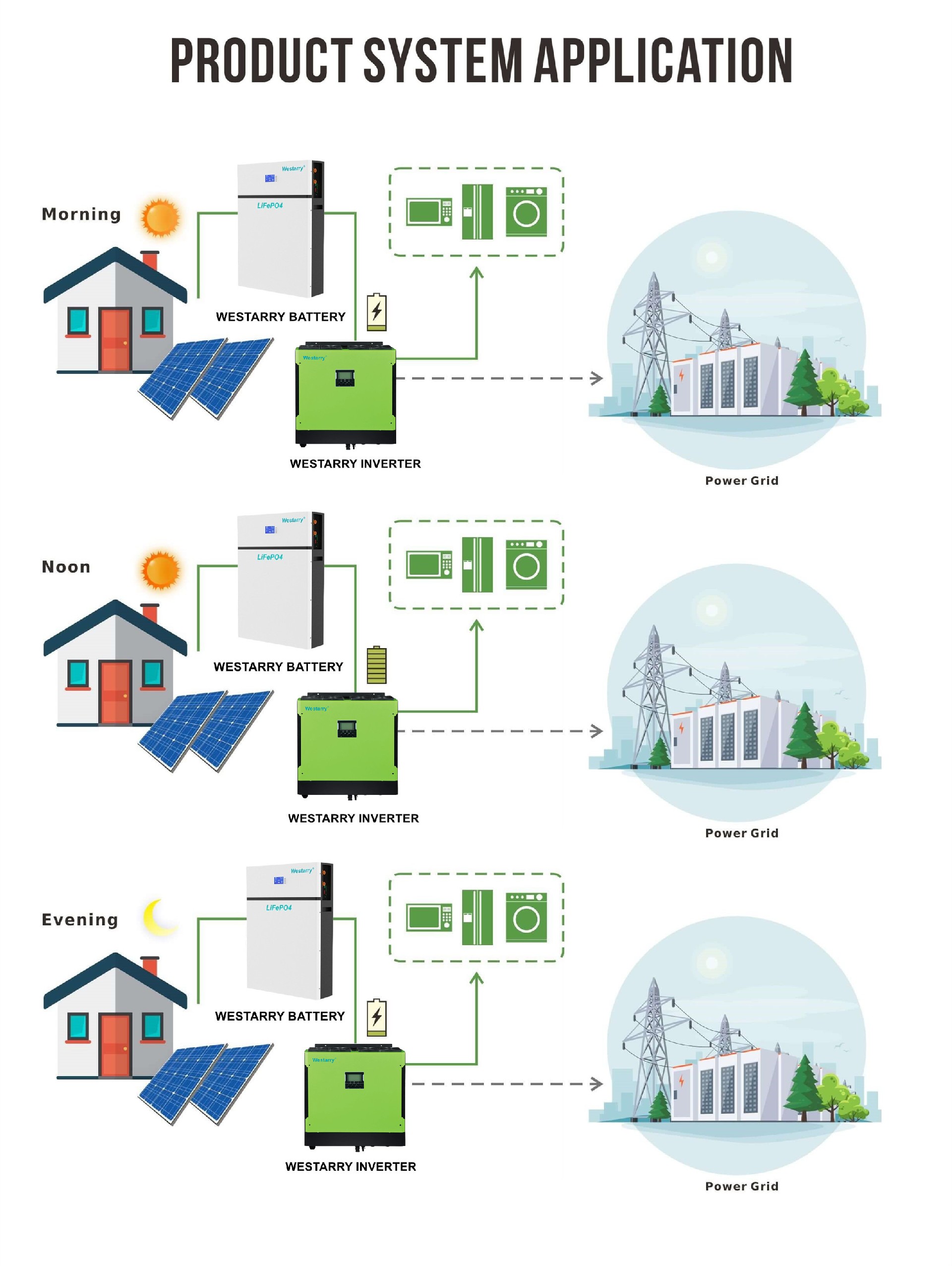

• Programmable multiple operation modes: Grid-tie,Off-grid and grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB.RS232,Modbus and SNMP
• Monitoring software for rel-time status display and control
• Parallel operation up to 6 units for 10KW
• Pure sine wave output
• Self-consumption and deed in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries
• Programmable multiple operation modes: Grid-tie,Off-grid and grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB.RS232,Modbus and SNMP
• Monitoring software for rel-time status display and control
• Parallel operation up to 6 units for 10KW
Tags：
Technical Specifications:
Model | WTX1033 |
PHASE | 3-phase in/3-phase out |
Max. PV INPUT POWER | 14850W |
Rated Output Power | 10000W |
Maximum Charging Power | 9600W |
GRID TIE OPERATION | |
PV INPUT (DC) | |
Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC |
Start-up Voltage/lnitial Feeding Voltage | 320 VDC/350 VDC |
MPP Voltage Range | 400 VDC-800 VDC |
Number of MPP Trackers | 2/2x18.6A |
Maximum Input Current | 2/2x18.6A |
GRID OUTPUT (AC) | |
Nominal Output Voltage | 230 VAC (P-N)/400 VAC (P-P) |
Output Voltage Range | 184-265 VAC* per phase |
Nominal Output Current | 14.5A per phase |
Power Factor | > 0.99 |
EFFICIENCY | |
Maximum Conversion Efficiency (DC/AC) | 96% |
European Efficiency@Vnominal | 95% |
OFF GRID OPERATION | |
AC INPUT | |
AC start-up Voltage | 120-140 VAC per phase/180 VAC per phase |
Auto Restart Voltage | 170-280 VAC per phase |
Acceptable Input Voltage Range | 170-280 VAC |
Max. AC Input Current | 40A |
PV INPUT (DC) | |
Max. DC Voltage | 900 VDC |
MPP Voltage Range | 400 VDC-800 VDC |
Number of MPPTrackers/Max. Input Current | 2/2x18.6A |
BATTERY Mode Output (AC) | |
Nominal Output Voltage | 230 VAC (P-N)/400 VAC (P-P) |
Output Waveform | Pure Sine Wave |
Efficiency (DC to AC) | 91% |
HYBRID OPER/EON | |
PV INPUT (DC) | |
Nominal DC Voltage/Max. DC Voltage | 720 VDC/ 900 VDC |
Start-up Voltage/lnitial Feeding Voltage | 320 VDC/ 350 VDC |
MPP Voltage Range | 400 VDC-800 VDC |
Number of MPP Trackers/Max. Input Current | 2/2x18.6A |
GRID OUTOUT (AC) | |
Nominal Output Voltage | 230 VAC (P-N)Z 400 VAC (P-P) |
Output Voltage Range | 184-264.5 VAC* per phase |
Nominal Output Current | 14.5A per phase |
AC INPUT | |
AC Start-up Voltage/Auto Restart Voltage | 120-140 VAC per phase/180 VAC per phase |
Acceptable Input Voltage Range | 170-280 VAC per phase |
Max. AC Input Current | 40A |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 230 VAC (P-N)/400 VAC(P-P) |
Efficiency (DC to AC) | 91% |
BATTERY& CHARGER | |
Battery DC Voltage | 48V |
Max. Charging Current | Default 60A, 10A-200A (Adjustable) |
GENERAL | |
PHYSICAL | |
Dimension, DxWxH (mm) | 167.5x500x622 |
Net weight (kgs) | 45 |
INTERFACE | |

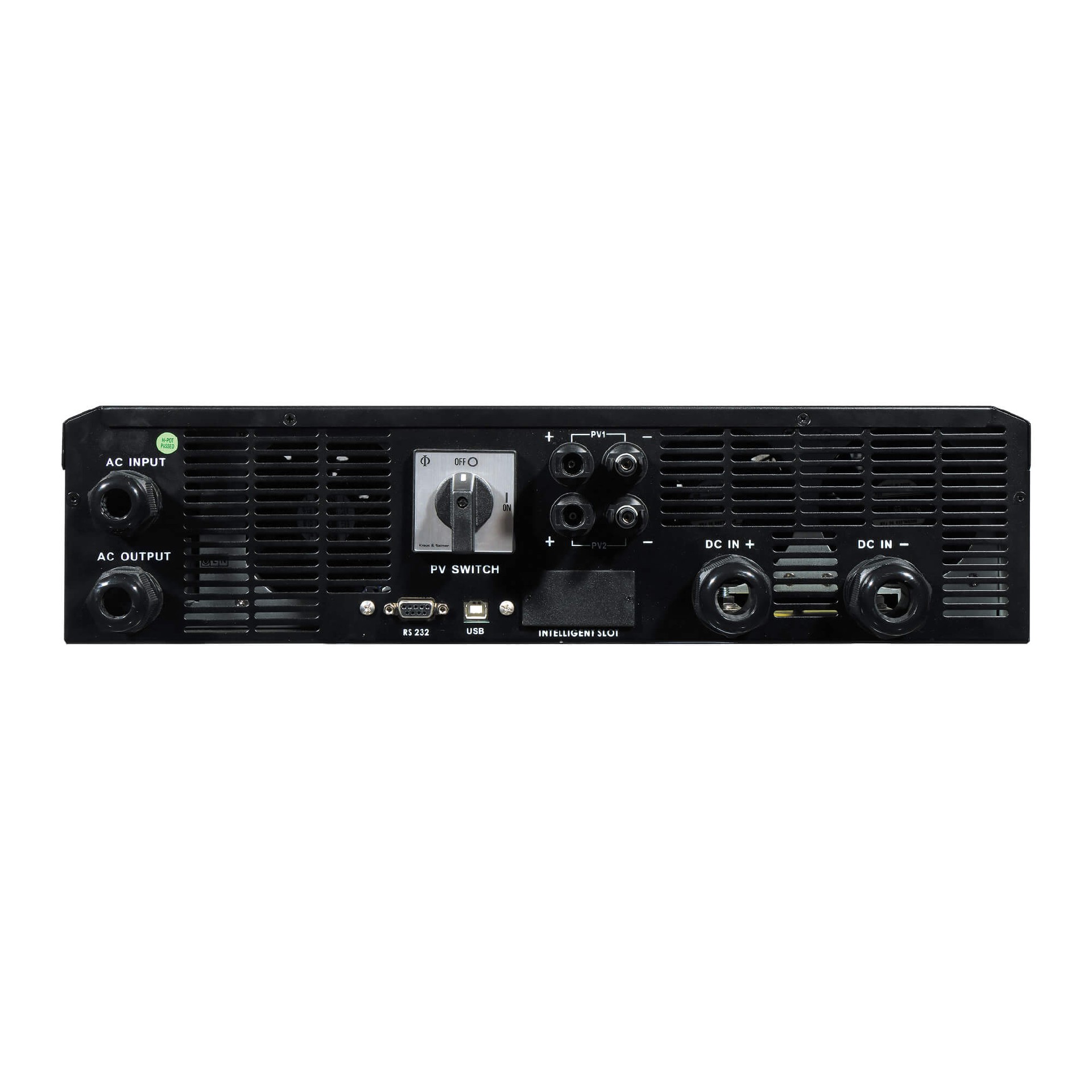

Communication Port | RS-232/USB and CAN Interface |
ENVIRONMENT | |
Humidity | 0 -90%RH |
Operating Temperature | -10 to 55 ℃ |
Altitude | 0-1000 m** |
