• Input Voltge:100-240Vac 47-63HZ
• Operating Tenperature:-10°C~+50*C
• Charge Method: Constant Voltage / Constant Current / Floating Charge (CC/CV)
• Efficiency:>87%
• Product Size:120*53*32mm
• Warranty:3 years
• Case Material:PC UL94VO
• Input Material:"Red" charge, "green" full
• N.W:0.3kg
• Packge Type:Cartons 20*9.5*5cm
• Package Size:50pcs (47.5*41.5*28cm)
• Delivery Ti me:2-5working days
• Product standards: CE/ROHS/SAA
Tags：

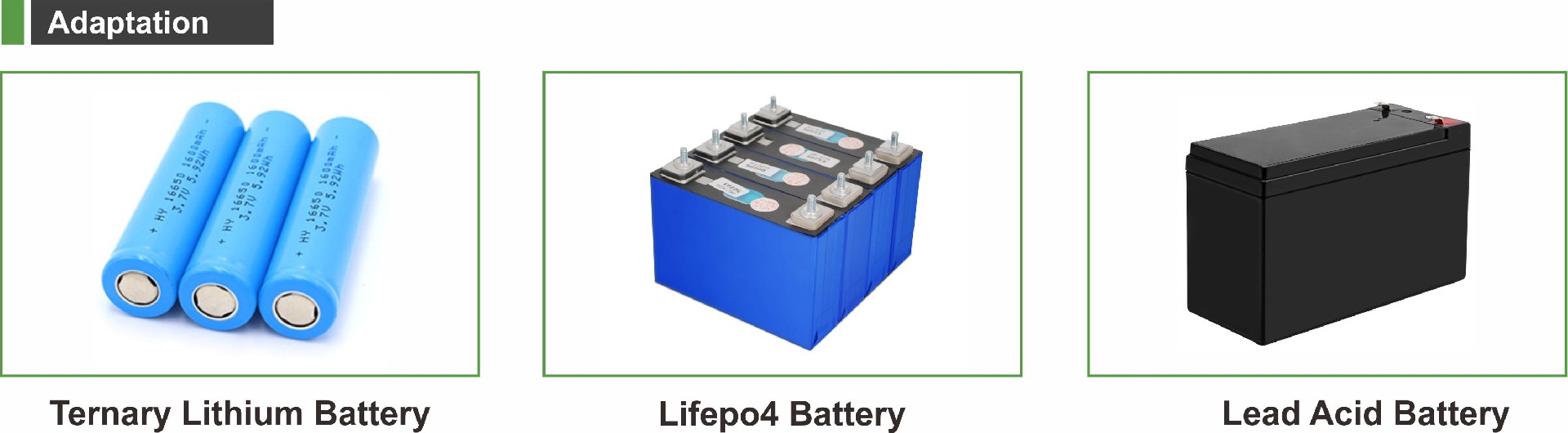

Charger for ternary lithium battery/lead acid/lifepo4 battery
Ltem No | Battery Vltage | Series | Charge voltage | Charge Current |
7.4V | 7.4V Ternary Lithium Battery | 2S | 8.4V | 5A |
12V | 12V Ternary Lithium Battery | 3S | 12.6V | 4.5A |
12V | 12V Lead Acid Battery | 1S | 14.5V | 4A |
12V | 14.8V Ternary Lithium Battery | 4S | 14.6V | 4A |
15V | 14.8V Ternary Lithium Battery | 4S | 14.6V | 4A |
22.2V | 22.2V Lead Acid Battery | 5S | 25.2V | 2A |
24V | 24V Lead Acid Battery | 2S | 29V | 2A |
24V | 24V Lifepo4Lithium Battery | 8S | 29.2V | 2A |
24V | 24V Ternary Lithium Battery | 7S | 29.4V | 2A |
30V | 29.6V(30V) Ternary Lithium Battery | 8S | 33.6V | 1.8A |
36V | 36V Ternary Lithium Battery | 10S | 42V | 1.5A |
36V | 36V Lead Acid Battery | 3S | 43.5V | 1.5A |
44.4V | 44.4V Ternary Lithium Battery | 12S | 50.4V | 1.2A |
48V | 48V Ternary Lithium Battery | 13S | 54.6V | 1.2A |
| 48V | 51.8V Ternary Lithium Battery | 14S | 58.8V | 1A |
| 48V | 48V Lead Acid Battery | 4S | 58V | 1A |
| 55.5V | 55.5V Ternary Lithium Battery | 15S | 63V | 1A |
| 60V | 60V Ternary Lithium Battery | 16S | 67.2V | 0.9A |
| 60V | 60V(63V) Ternary Lithium Battery | 17S | 71.4V | 0.9A |
